Ultrasonic Sensor: Components

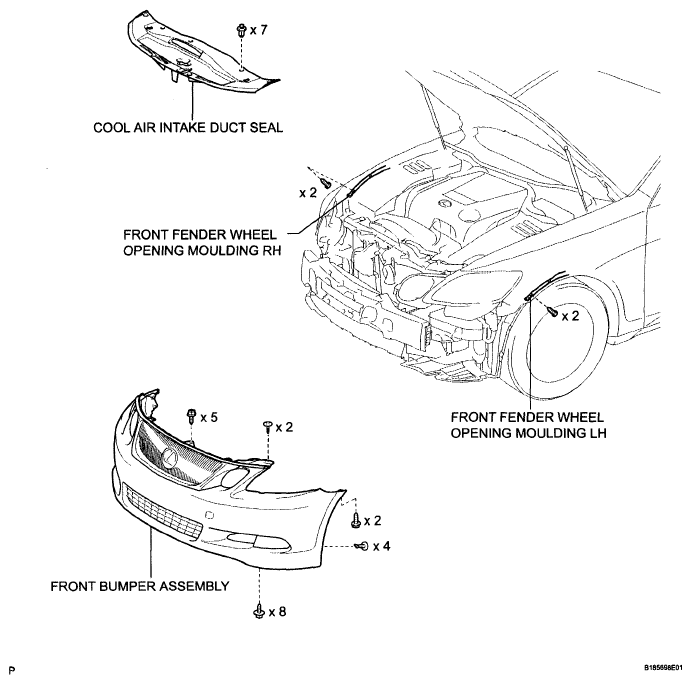

Fig 1: Identifying Ultrasonic Sensor Replacement Components (1 Of 4)
G05820192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

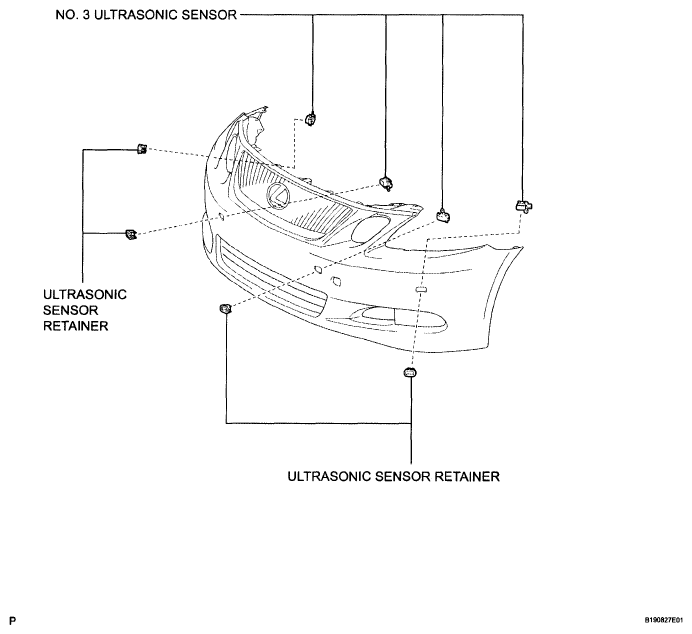

Fig 2: Identifying Ultrasonic Sensor Components (2 Of 4)
G05820193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

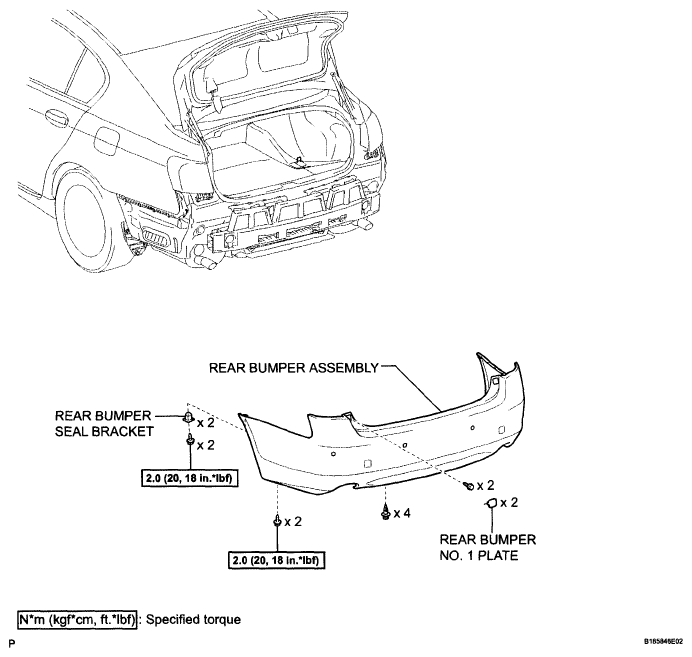

Fig 3: Identifying Ultrasonic Sensor Replacement Components With Torque Specification (3 Of 4)
G05820194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

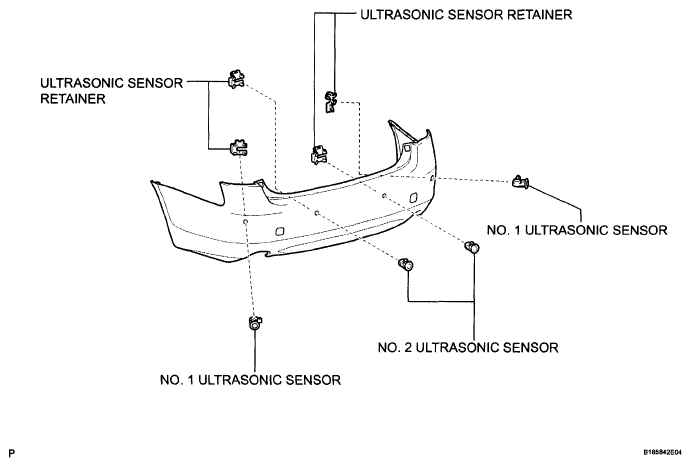

Fig 4: Identifying Ultrasonic Sensor Components (4 Of 4)
G05820195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
