Inspection Procedure

1. Disconnect the K47 display connector.
2. Disconnect the Y8 camera connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Specified Condition
   K47-13 (CA+) - Y8-4 (CB+)	Below 1 Ω
   K47-14 (CGND) - Y8-3 (CGND)	Below 1 Ω
   K47-27 (V+) - Y8-2 (CV+)	Below 1 Ω
   K47-28 (V-) - Y8-1 (CV-)	Below 1 Ω
   K47-13 (CA+) - Body ground	10 kΩ or higher
   K47-14 (CGND) - Body ground	10 kΩ or higher
   K47-27 (V+) - Body ground	10 kΩ or higher
   K47-28 (V-) - Body ground	10 kΩ or higher

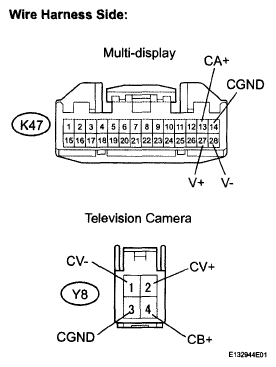

Fig 1: Identifying Multi-Display And Television Camera Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Reconnect the K47 display connector.
2. Measure the voltage of the connector.

   Standard voltage

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   Y8-4 (CB+) - Y8-3 (CGND)	Power switch ON (IG), shift lever in R position	Approx. 6 V

Fig 2: Identifying Multi-Display Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE MULTI-DISPLAY

OK: Go to next step

1. Reconnect the Y8 camera connector.

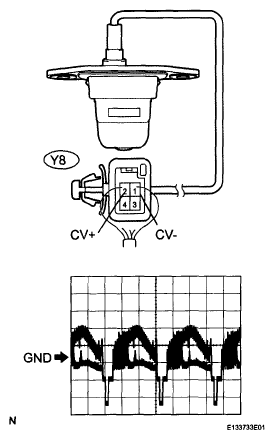

2. Check the waveform of the camera using an oscilloscope.

   OK: Waveform is as shown in the illustration.

   WAVEFORM REFERENCE



   Item	Content
   Measurement terminal	CV+ (Y8-2) - CV- (Y8-1)
   Measurement setting	0.2 V/DIV., 0.2 μ sec./DIV.
   Condition	Power switch ON (IG), shift lever in R position

Fig 3: Identifying Television Camera Assembly Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE TELEVISION CAMERA ASSEMBLY

OK: PROCEED TO NEXT INSPECTION PROCEDURE SHOWN IN  PROBLEM SYMPTOMS TABLE
