Home >> Lexus >> 2008 >> GS 350 RWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> A760E Automatic Transaxle >> Oil Pump >> Components

Oil Pump: Components

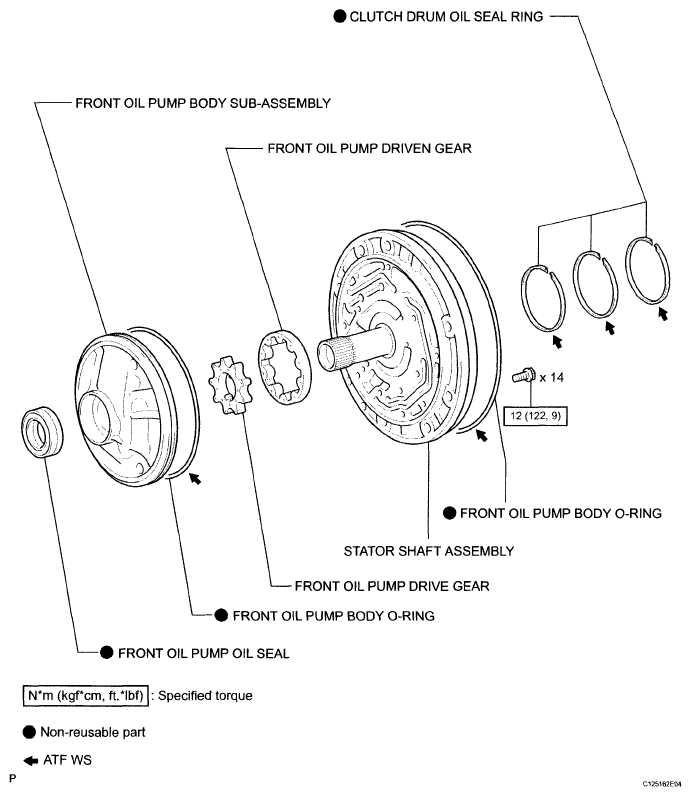

Fig 1: Identifying Oil Pump Components

G05802483

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
