Parts Location

Fig 1: Identifying Front Power Seat Control System Parts Location (1 Of 2)
G05300440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

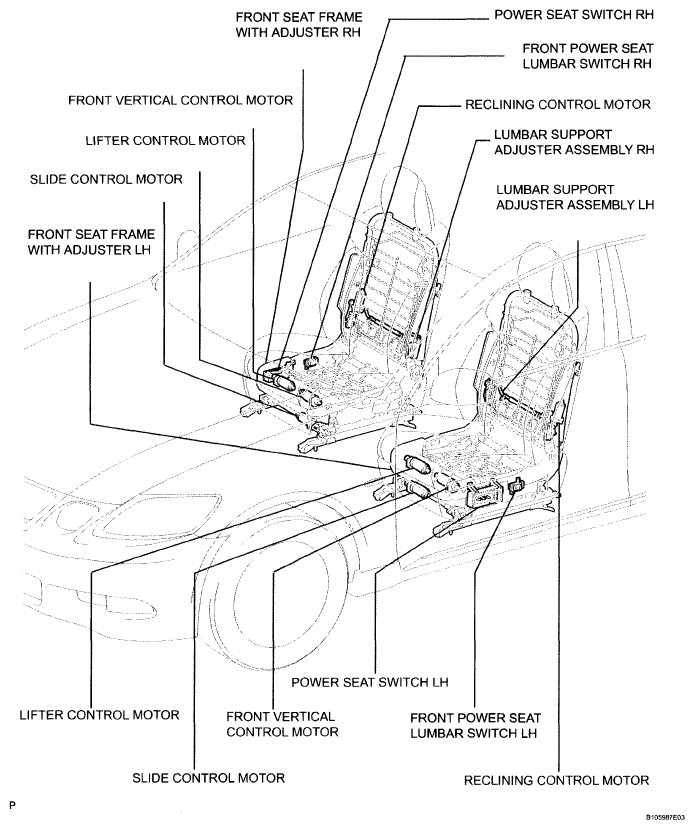

Fig 2: Identifying Front Power Seat Control System Parts Location (2 Of 2)
G05811980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
