Engine Control System - System And Circuit Testing, On-Vehicle Inspection, Removal, Inspection & Installation
>>
Integration Relay
>>
Components
Integration Relay: Components

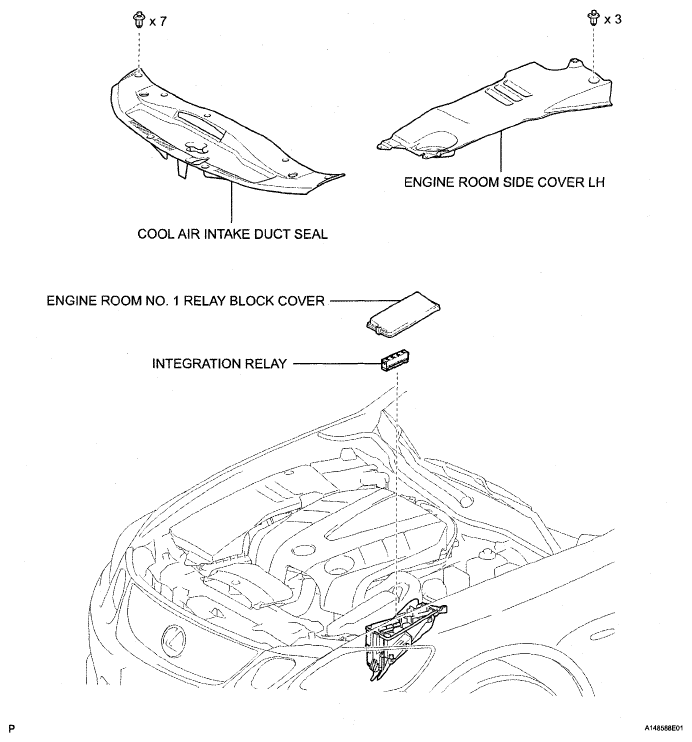

Fig 1: Integration Relay Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
