Inspection Procedure

1. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   STANDARD VOLTAGE SPECIFICATION



   Tester Connection	Condition	Specified Condition
   A6-15 (FPR) - E7-7 (E1)	STA signal ON	11 to 14 V
   A6-15 (FPR) - E7-7 (E1)	STA signal OFF	0 to 3 V

NG : REPLACE ECM

Fig 1: Identifying E7 And A6 ECM Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : Go to Next Step

1. Remove the F/PMP relay from the engine room No. 2 relay block.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   STANDARD RESISTANCE SPECIFICATION



   Tester Connection	Specified Condition
   3 - 4	Below 1 Ω
   3 - 4	10 kΩ or more (when battery voltage is applied to terminals 1 and 2)

   Fig 2: Inspecting F/PMP Relay

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG : REPLACE F/PMP RELAY

OK : Go to Next Step

1. Remove the F/PMP relay from the engine room No. 2 relay block.
2. Disconnect the A6 ECM connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance (Check for open)

   STANDARD RESISTANCE SPECIFICATION



   Tester Connection	Specified Condition
   F/PMP relay (2) - A6-15 (FPR)	Below 1 Ω

   Standard resistance (Check for short)

   STANDARD RESISTANCE SPECIFICATION



   Tester Connection	Specified Condition
   F/PMP relay (2) or A6-15 (FPR) - Body Ground	10 kΩ or higher

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

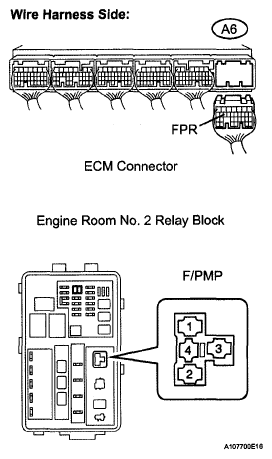

Fig 3: Identifying F/Pump Relay From Engine Room No. 2 Relay Block

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : REPLACE ECM
