Inspection Procedure

1. Disconnect the U28 ECU connector.
2. Measure the resistance and voltage of the wire harness side connector.

   Standard voltage

   VOLTAGE SPECIFIED CONDITIONS



   Tester Connection	Specified Condition
   U28-1 (+B1) - Body ground	10 to 14 V

   Standard resistance

   RESISTANCE SPECIFIED CONDITION



   Tester Connection	Specified Condition
   U28-17 (E) - Body ground	Below 1 Ω

NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

Fig 1: Identifying U28 Certification ECU Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : Go to next step

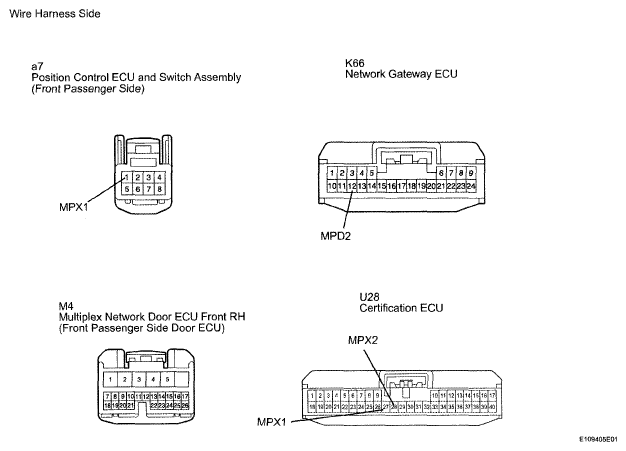

Fig 2: Identifying A7, K66, M4 And U28 ECU Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the a7, K66, M4 and U28 ECU connectors.
2. Measure the resistance of the wire harness side connectors.

   Standard resistance

   RESISTANCE SPECIFIED CONDITION



   Tester Connection	Specified Condition
   U28-27 (MPX1) - M4-8 (MPX1)	Below 1 Ω
   U28-27 (MPX1) - a7-1 (MPX1)	Below 1 Ω
   U28-28 (MPX2) - K66-12 (MPD2)	Below 1 Ω

   Result

   RESULT CHART



   Result	Proceed to
   Both are OK	A
   One or two is / are OK	B
   Both are NG	C

B : REPLACE CERTIFICATION ECU AND WIRE HARNESS CONNECTOR

C : REPAIR OR REPLACE HARNESS AND CONNECTOR

A : REPLACE CERTIFICATION ECU
