Inspection Procedure

1. Remove the H-LP LVL fuse from the cowl side junction block LH.
2. Measure the resistance of the fuse.

   Standard:

   Below 1 Ω

NG : REPLACE FUSE

OK : Go to next step

1. Disconnect the A29 ECU connector.
2. Turn the engine switch on (IG).
3. Measure the voltage and resistance of the wire harness side connector.

   Standard voltage

   VOLTAGE SPECIFIED CONDITIONS



   Tester Connection	Specified Condition
   A29-2 (IG) - Body ground	10 to 14 V

   Standard resistance

   RESISTANCE SPECIFIED CONDITION



   Tester Connection	Specified Condition
   A29-1 (E1) - Body ground	Below 1 Ω

NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

Fig 1: Identifying A29 Headlight Swivel ECU Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : Go to next step

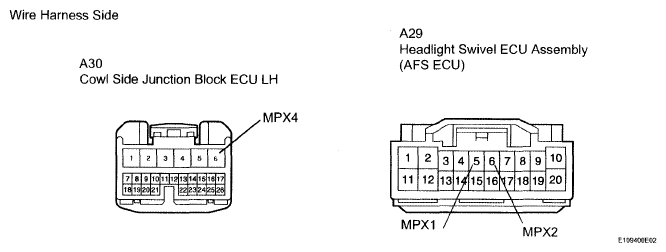

Fig 2: Identifying A29 And A30 ECU Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the A29 and A30 ECU connectors.
2. Disconnect the 2F relay block connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   RESISTANCE SPECIFIED CONDITION



   Tester Connection	Specified Condition
   A29-5 (MPX1) - A30-6 (MPX4)	Below 1 Ω
   A29-6 (MPX2) - 2F-6 (MPX1)	Below 1 Ω

   Result

   RESULT CHART



   Result	Proceed to
   Both are OK	A
   One is OK	B
   Both are NG	C

B : REPAIR OR REPLACE HARNESS AND CONNECTOR

C : REPLACE HEADLIGHT SWIVEL ECU ASSEMBLY (AFS ECU) AND REPAIR OR REPLACE HARNESS AND CONNECTOR

A : REPLACE HEADLIGHT SWIVEL ECU ASSEMBLY (AFS ECU)
