Home >> Lexus >> 2008 >> ES 350 >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Supplemental Restraint System >> Occupant Classification Ecu >> Components

Occupant Classification Ecu: Components

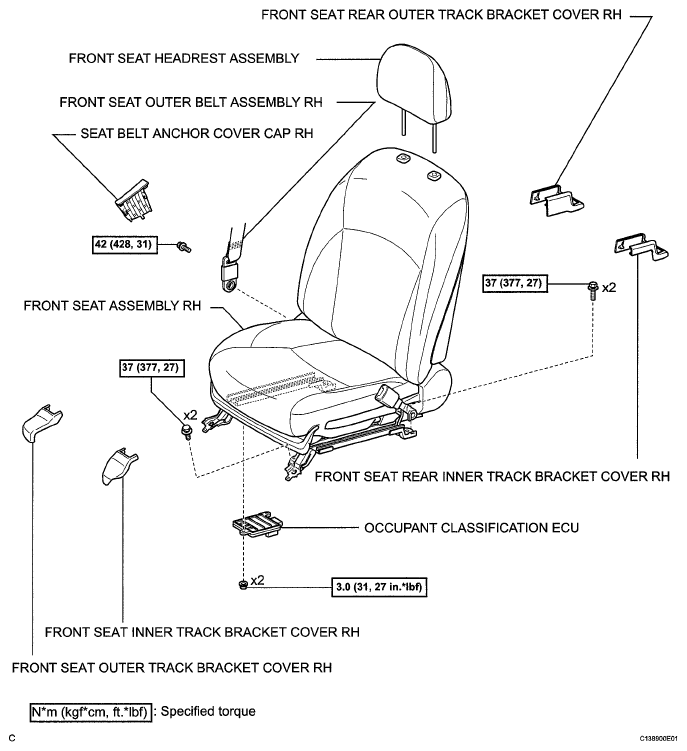

Fig 1: Occupant Classification ECU Replacement Components With Torque Specifications

G05837539

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
