Front Passenger Airbag Assembly: Components

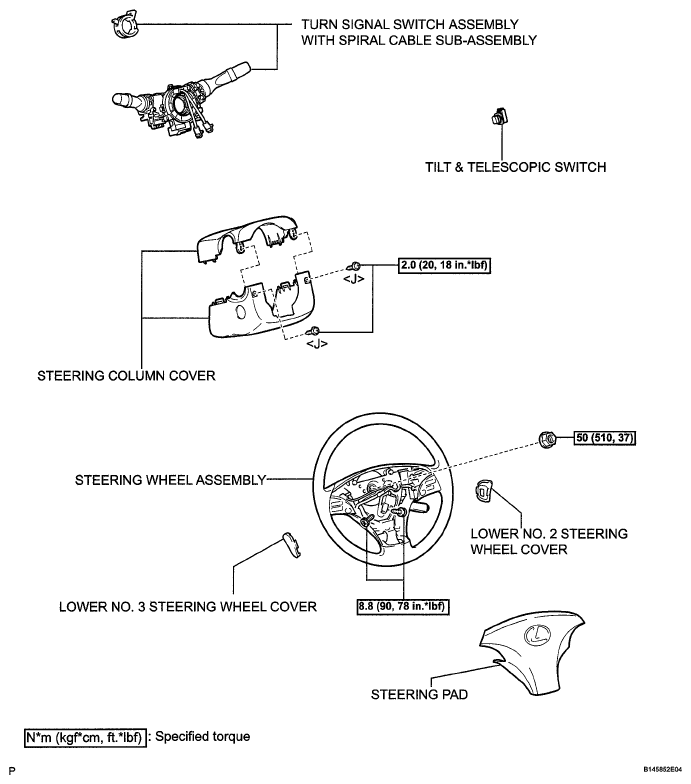

Fig 1: Front Passenger Airbag Assembly Replacement Components With Torque Specifications (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

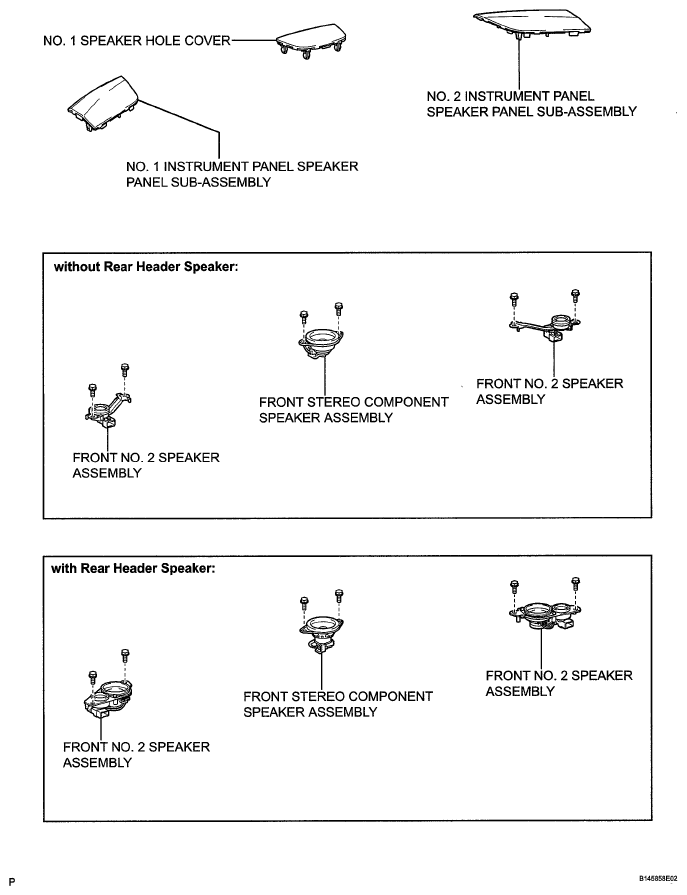

Fig 2: Identifying Front Passenger Airbag Assembly Components (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

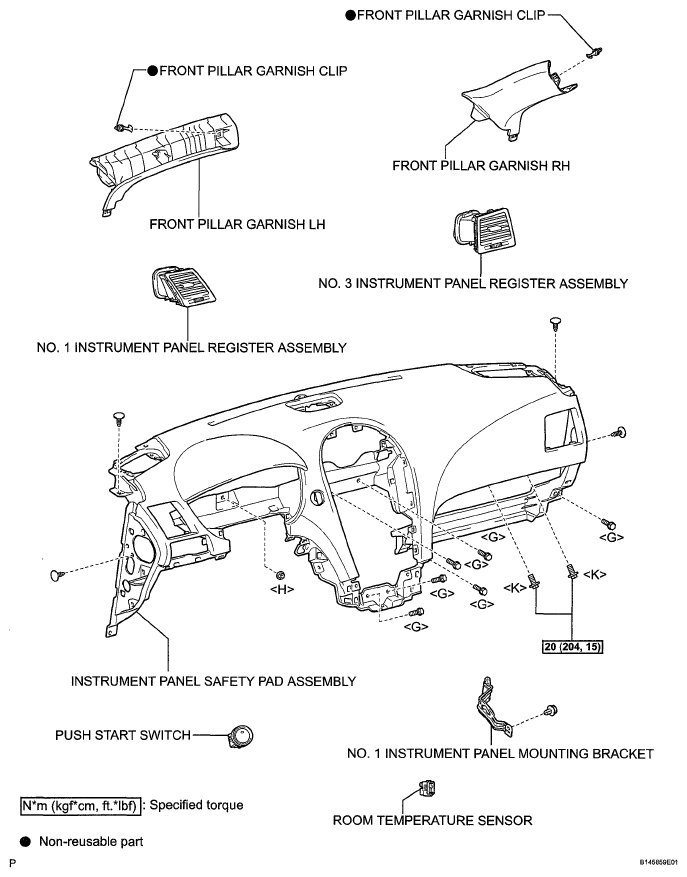

Fig 3: Front Passenger Airbag Assembly Replacement Components With Torque Specifications (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

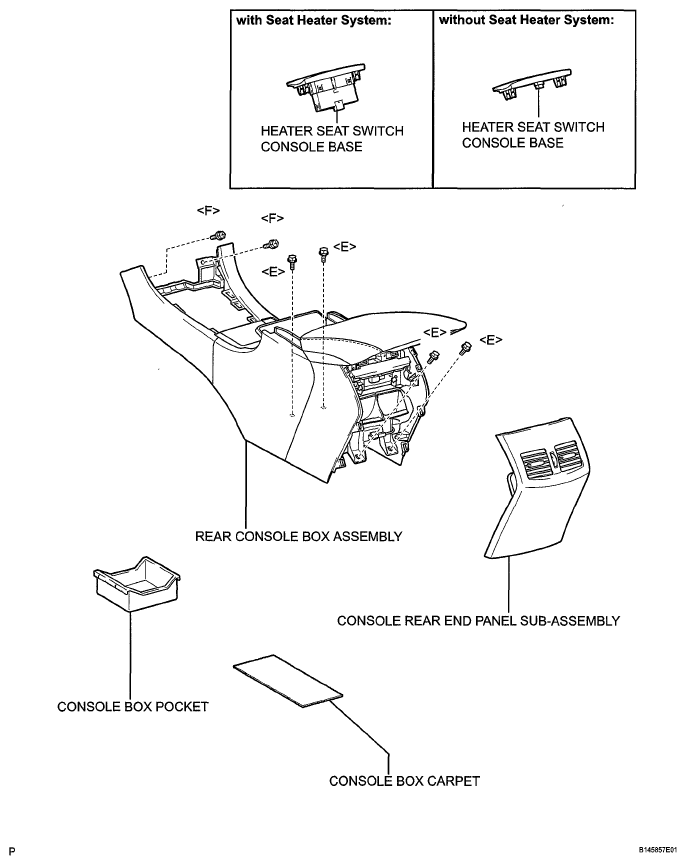

Fig 4: Identifying Front Passenger Airbag Assembly Components (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

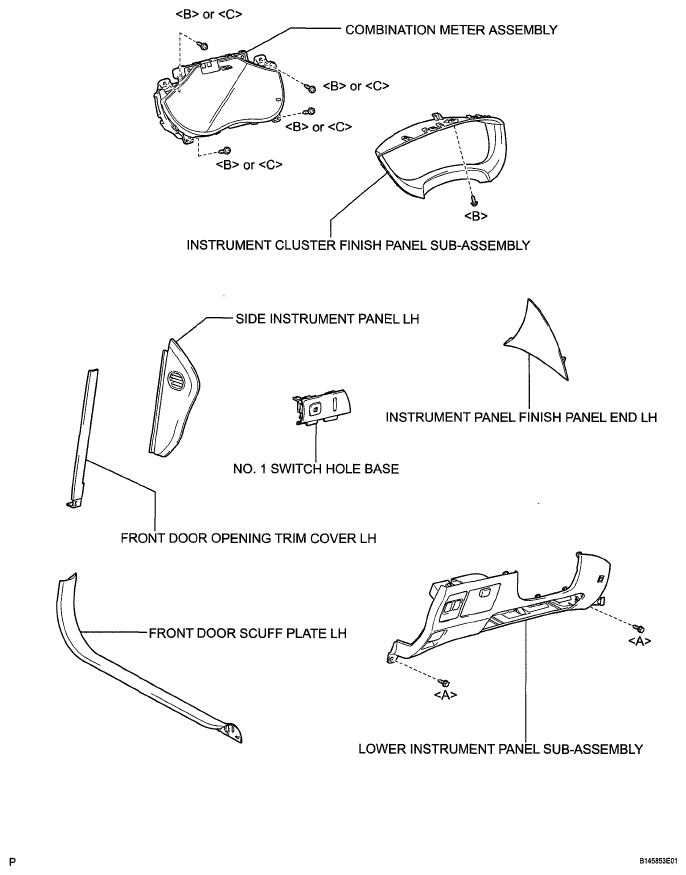

Fig 5: Identifying Front Passenger Airbag Assembly Components (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

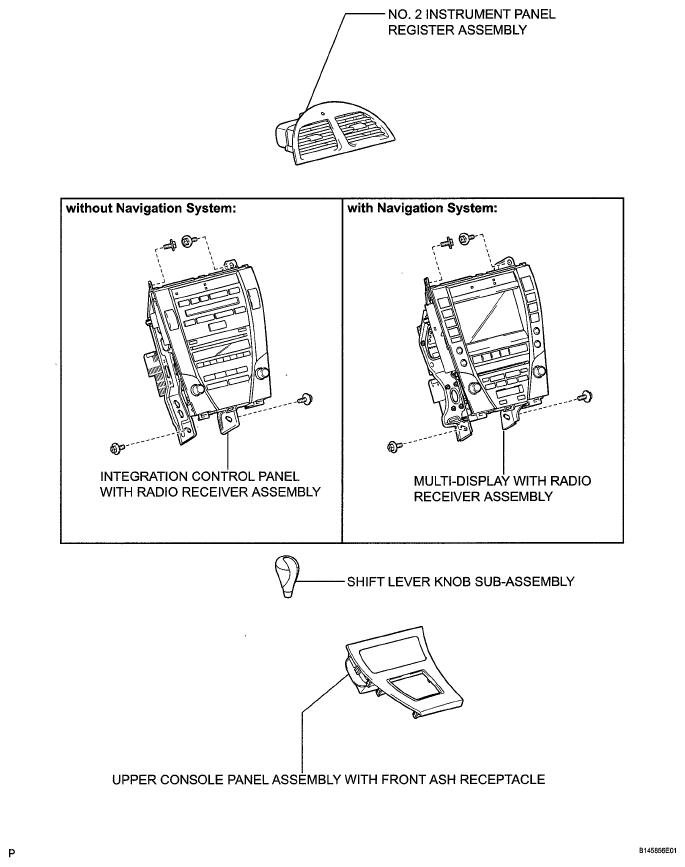

Fig 6: Identifying Front Passenger Airbag Assembly Components (6 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

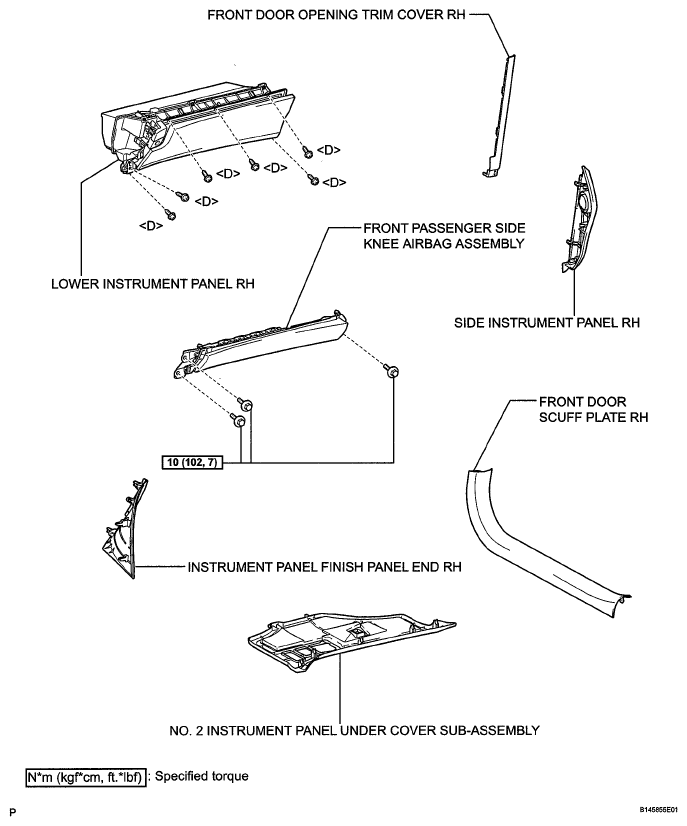

Fig 7: Front Passenger Airbag Assembly Replacement Components With Torque Specifications (7 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

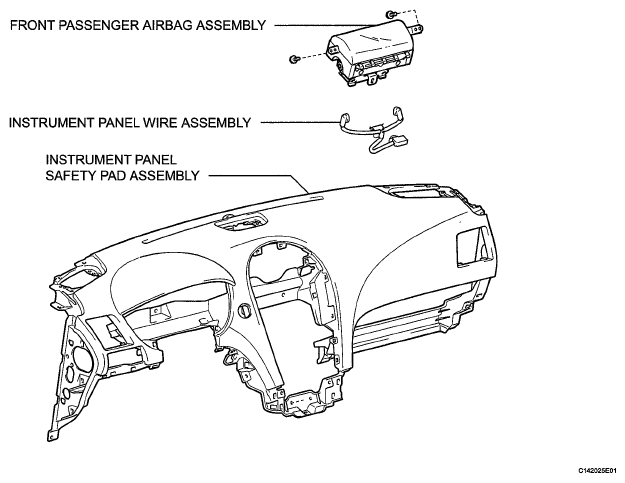

Fig 8: Identifying Front Passenger Airbag Assembly Components (8 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
