Stereo Component Amplifier: Removal

WARNING: This page is about a different car, the 2007 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE LUGGAGE COMPARTMENT FLOOR MAT
  2. REMOVE SPARE WHEEL COVER TRAY
  3. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY  (See ON-VEHICLE INSPECTION )
  4. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK  (See DISASSEMBLY )
  5. REMOVE REAR FLOOR FINISH PLATE  (See DISASSEMBLY )
  6. REMOVE LUGGAGE COMPARTMENT INNER TRIM COVER RH
    1. Remove the 3 clips and the luggage compartment inner trim cover RH.
    Fig 1: Identifying Luggage Compartment Inner Trim Cover RH With Clips
    G05253033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE CLEARANCE WARNING ECU ASSEMBLY (w/ Intuitive Parking Assist System)  (See REMOVAL )
  8. REMOVE SEAT BELT CONTROL ECU (w/ Pre-collision System)  (See REMOVAL )
  9. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY WITH BRACKET
    1. Disconnect each connector.
    2. Remove the 3 nuts and the stereo component amplifier assembly with bracket.

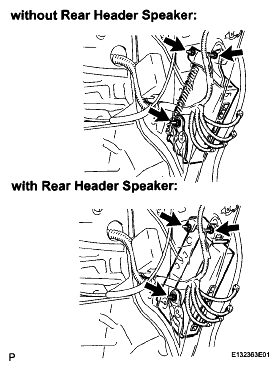

      Fig 2: Locating Stereo Component Amplifier Assembly With Bracket Nuts
      G05253034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE NO. 1 AMPLIFIER BRACKET
    1. Remove the 2 bolts and the No. 1 amplifier bracket.
      Fig 3: Locating No.1 Amplifier Bracket Bolts
      G05253035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE NO. 2 AMPLIFIER BRACKET
    1. Remove the 2 bolts and the No. 2 amplifier bracket.
    Fig 4: Locating No. 2 Amplifier Bracket Bolts
    G05253036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY
