Radio Receiver: Removal

WARNING: This page is about a different car, the 2007 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY  (See REMOVAL )
  2. REMOVE UPPER CONSOLE PANEL ASSEMBLY WITH FRONT ASH RECEPTACLE  (See REMOVAL )
  3. REMOVE INSTRUMENT PANEL FINISH PANEL END LH  (See REMOVAL )
  4. REMOVE INSTRUMENT PANEL FINISH PANEL END RH  (See REMOVAL )
  5. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY  (See REMOVAL )
  6. REMOVE INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System)
    1. Remove the 4 bolts.
    2. Pull the integration control panel with radio receiver assembly toward the rear of the vehicle and disengage the 2 clips.
    3. Disconnect each connector and remove the integration control panel with radio receiver assembly.
      Fig 1: Locating Radio Receiver Bolts And Clips
      G05253015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NO. 1 RADIO BRACKET (w/o Navigation System)
    1. Remove the 4 bolts, screw, and No. 1 radio bracket.
      Fig 2: Locating No.1 Radio Bracket Bolts And Screw (W/O Navigation System)
      G05253016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE NO. 2 RADIO BRACKET (w/o Navigation System)
    1. Remove the 4 bolts, screw, and No. 2 radio bracket.
    Fig 3: Locating No.2 Radio Bracket Bolts And Screw (W/O Navigation System)
    G05253017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE RADIO RECEIVER ASSEMBLY (w/o Navigation System)
    1. Disengage the 2 claws and 6 clips.
      Fig 4: Identifying Radio Receiver With Bolts And Clips (W/O Navigation System)
      G05253018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the radio receiver assembly.
  10. REMOVE MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System)
    1. Remove the 4 bolts.
    2. Pull the multi-display with radio receiver assembly toward the rear of the vehicle and disengage the 2 clips.
    3. Disconnect each connector and remove the multi-display with radio receiver assembly.

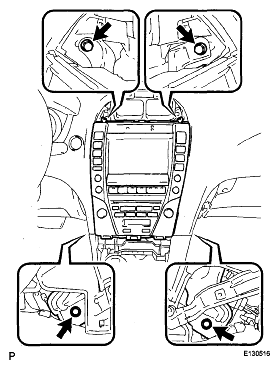

      Fig 5: Locating Multi-Display With Radio Receiver Assembly Bolts (W/ Navigation System)
      G05253019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE NO. 1 RADIO BRACKET (w/ Navigation System)
    1. Remove the 6 bolts and No. 1 radio bracket.
      Fig 6: Locating No. 1 Radio Bracket Bolts (W/ Navigation System)
      G05253020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE NO. 2 RADIO BRACKET (w/ Navigation System)
    1. Remove the 6 bolts and No. 2 radio bracket.
      Fig 7: Locating No. 2 Radio Bracket Bolts (W/ Navigation System)
      G05253021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE RADIO RECEIVER ASSEMBLY (w/ Navigation System)
    1. Disengage the 2 claws and 4 clips.
      Fig 8: Identifying Radio Receiver Assembly Claws And Clips (W/ Navigation System)
      G05253022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the radio receiver assembly.
