Roof Headlining: Installation

WARNING: This page is about a different car, the 2007 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL NO. 1 ROOF WIRE (for Standard)
    1. Apply new double-sided tape to the locations shown in the illustration while aligning the tape with the markings on the roof headlining.

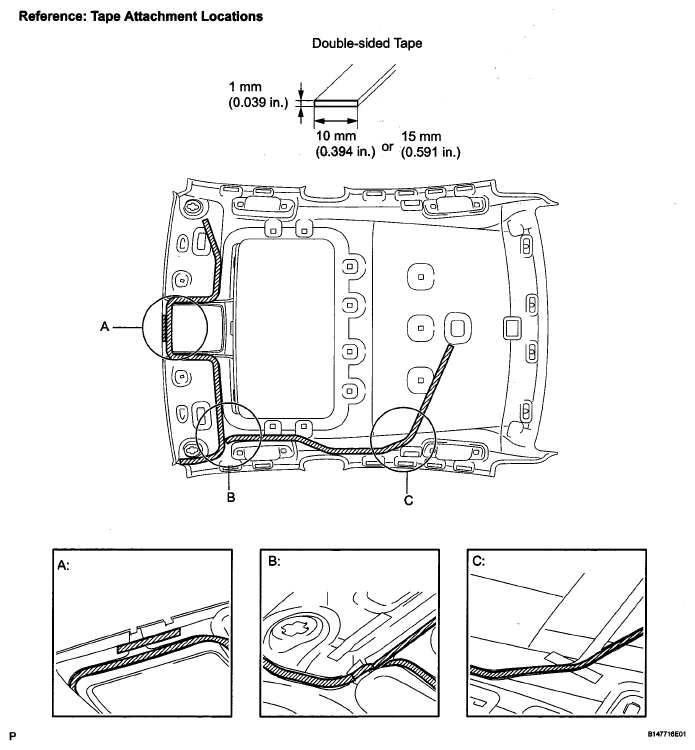

      Fig 1: Identifying Roof Headlining Location
      G05254687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Securely apply the double-sided tape to prevent the tape from being out of alignment and peeling off.
    2. Peel off the release paper from the double-sided tape.
    3. Attach the No. 1 roof wire along the double-sided tape so that the marking surface of the wire harness faces downward.
      NOTE:
      • Securely attach the No. 1 roof wire.
      • Failure to do so may cause abnormal noise.
    4. Turn the visor connectors clockwise approximately 90° to the connectors of the roof headlining.
    5. Apply adhesive tape to the locations shown in the illustration.

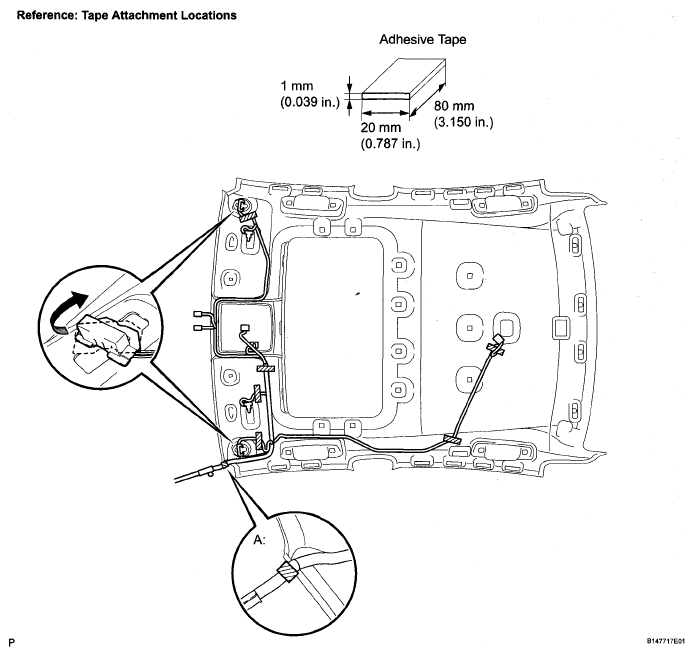

      Fig 2: Turning Visor Connectors To Roof Headlining
      G05254688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      As shown at point A in the illustration, line up and secure the reference tape of the wire harness to the tip of the roof headlining assembly.

  2. INSTALL NO. 1 ROOF WIRE (for Glass Roof)
    1. Apply new double-sided tape to the locations shown in the illustration while aligning the tape with the markings on the roof headlining.

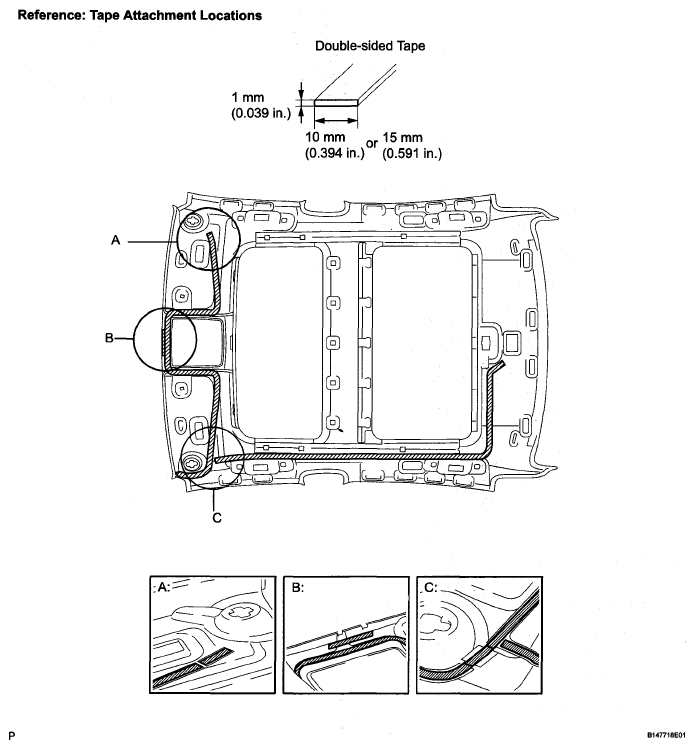

      Fig 3: Identifying Roof Wire (For Glass Roof)
      G05254689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Securely apply the double-sided tape to prevent the tape from being out of alignment and peeling off.
    2. Peel off the release paper from the double-sided tape.
    3. Attach the No. 1 roof wire along the double-sided tape so that the marking surface of the wire harness faces downward.
      NOTE:
      • Securely attach the No. 1 roof wire.
      • Failure to do so may cause abnormal noise.
    4. Turn the visor connectors clockwise approximately 90° to the connectors of the roof headlining.
    5. Apply adhesive tape to the locations shown in the illustration.

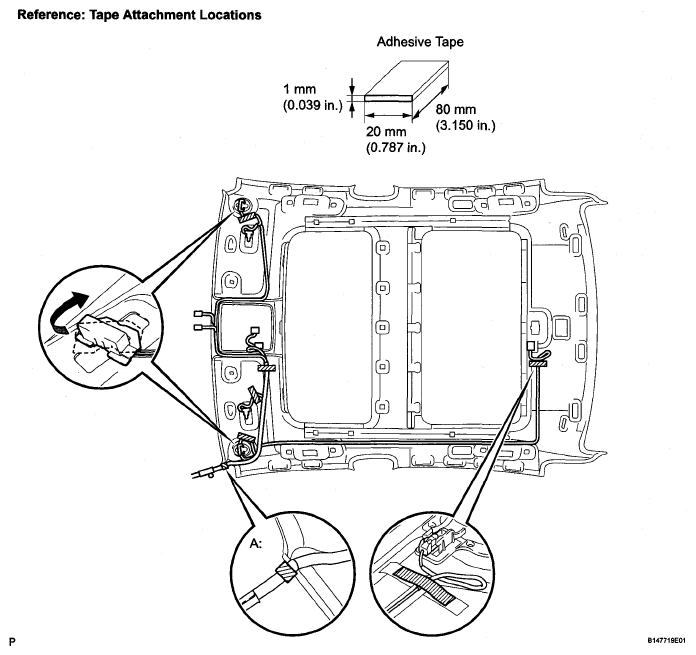

      Fig 4: Turning Visor Connectors To Roof Headlining
      G05254690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      As shown at point A in the illustration, line up and secure the reference tape of the wire harness to the tip of the roof headlining assembly.

  3. INSTALL VANITY LIGHT ASSEMBLY
    1. Install the vanity light to the roof headlining.
    2. Connect the 2 claws to install the bulb holder.

      HINT:

      Use the same procedure to install the light on the other side.

      Fig 5: Locating Vanity Light Assembly
      G05254691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL ANTENNA CORD SUB-ASSEMBLY  ( INSTALLATION )
  5. INSTALL ROOF HEADLINING ASSEMBLY (for Standard)
    1. Pull the roof headlining assembly into the vehicle through the front right door.
    2. Engage the 12 claws, 4 clips, and 11 fasteners.
    3. Connect the antenna cord sub-assembly connector and engage the clamp to the rear pillar RH.
    4. Connect the antenna cord sub-assembly connector and engage each clamp to the front pillar RH.
      Fig 6: Locating Roof Headlining Assembly
      G05254692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Connect the No. 1 wire connector and engage each clamp to the front pillar LH.

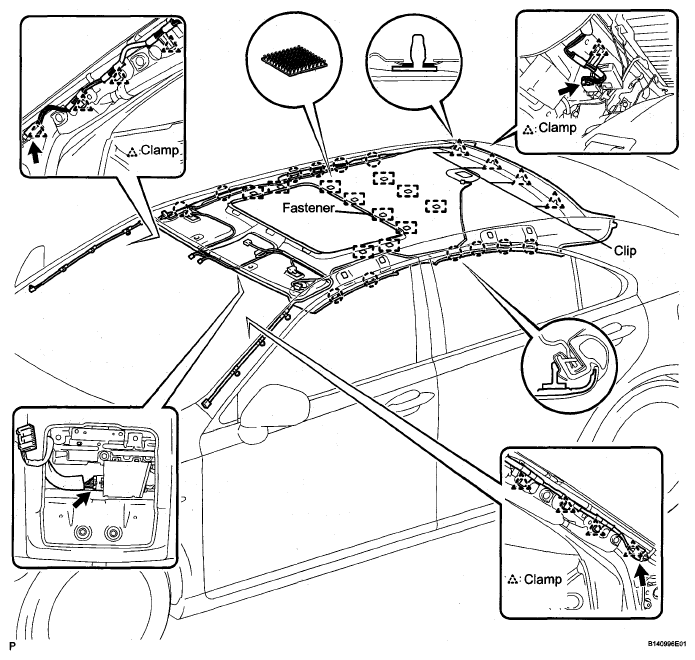

      Fig 7: Identifying Wire Connector And Clamp To Front Pillar LH
      G05254680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL ROOF HEADLINING ASSEMBLY (for Glass Roof)
    1. Pull the roof headlining assembly into the vehicle through the front right door.
    2. Engage the 12 claws, 4 clips, and 21 fasteners.
    3. Connect the antenna cord sub-assembly connector and engage the clamp to the rear pillar RH.
    4. Connect the antenna cord sub-assembly connector and engage each clamp to the front pillar RH.

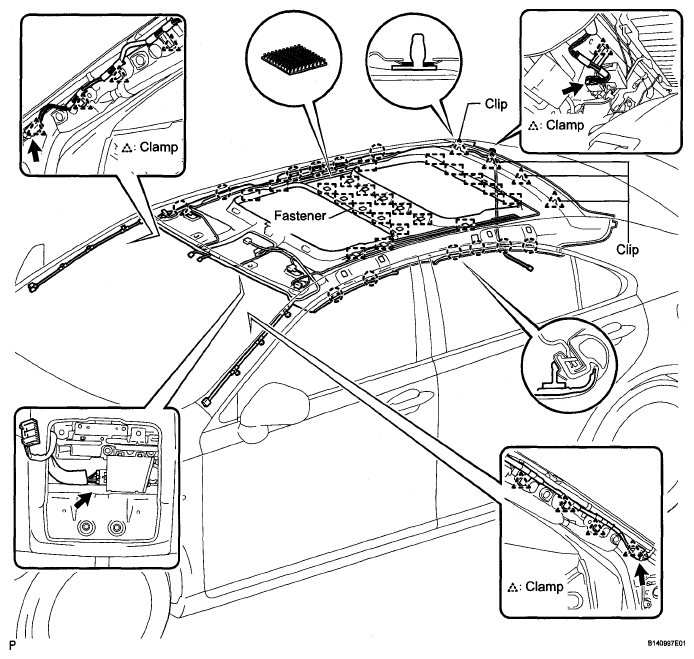

      Fig 8: Locating Roof Headlining Assembly (For Glass Roof)
      G05254694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Connect the No. 1 wire connector and engage each clamp to the front pillar LH.
      Fig 9: Identifying Wire Connector And Clamp To Front Pillar LH
      G05254682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL ASSIST GRIP SUB-ASSEMBLY
    1. Engage the 2 clips to an assist grip sub-assembly as shown in the illustration.
    2. Install the assist grip sub-assembly.
    3. Install the 2 assist grip covers to the assist grip sub-assembly.

      HINT:

      Use the same procedure for the other 3 assist grips.

      Fig 10: Identifying Assist Grip Sub-Assembly
      G05254696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL SPOT LIGHT ASSEMBLY (for Standard)
    1. Connect the connector.
      Fig 11: Locating Spot Light Assembly (For Standard)
      G05254697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 2 clips and install the spot light assembly.
      Fig 12: Identifying Spot Light Assembly
      G05254698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL SPOT LIGHT ASSEMBLY (for Glass Roof)
    1. Connect the connector.
      Fig 13: Locating Spot Light Assembly (For Glass Roof)
      G05254699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 2 clips and install the spot light assembly.
      Fig 14: Identifying Spot Light Assembly
      G05254698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL COAT HOOK
    1. Install the coat hook with the screw.

      HINT:

      Use the same procedure to install the hook on the other side.

      Fig 15: Identifying Coat Hook With Screw
      G05254676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL VISOR HOLDER
    1. Set the claws of the visor holder as shown in the illustration.
    2. Engage the claws and install the visor holder.

      HINT:

      Use the same procedure to install the holder on the other side.

      Fig 16: Engaging Claws
      G05254702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL VISOR ASSEMBLY LH
    1. Install the visor assembly LH with the 2 screws.
    Fig 17: Identifying Visor Assembly RH
    G05254674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL VISOR ASSEMBLY RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  14. INSTALL VISOR BRACKET COVER
    1. Engage the 4 claws and install the visor bracket cover.

      HINT:

      Use the same procedure to install the cover on the other side.

      Fig 18: Identifying Visor Bracket Cover
      G05254704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL ROOF CONSOLE BOX ASSEMBLY
    1. Connect the connector.
    2. Engage the 2 clips.
      Fig 19: Installing Roof Console Box Assembly
      G05254705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the roof console box assembly with the 2 screws.
      Fig 20: Identifying Rain Sensor Cover (w/ Rain Sensor)
      G05254671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL RAIN SENSOR COVER (w/ Rain Sensor)  ( INSTALLATION )
  17. INSTALL INNER REAR VIEW MIRROR STAY HOLDER COVER  ( INSTALLATION )
  18. CONNECT STEREO COMPONENT AMPLIFIER ASSEMBLY CONNECTOR (w/ DVD Player)
    1. Connect the stereo component amplifier assembly connector.
  19. INSTALL LUGGAGE COMPARTMENT INNER TRIM COVER RH (w/ DVD Player)  ( REASSEMBLY )
  20. INSTALL REAR FLOOR FINISH PLATE (w/ DVD Player)  ( REASSEMBLY )
    Fig 21: Locating Stereo Component Amplifier Assembly Connector
    G05254669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (w/ DVD Player)  ( REASSEMBLY )
  22. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY (w/ DVD Player)  ( REASSEMBLY )
  23. INSTALL SPARE WHEEL COVER TRAY (w/ DVD Player)
  24. INSTALL LUGGAGE COMPARTMENT FLOOR MAT (w/ DVD Player)
  25. INSTALL FLOOR CARPET BRACKET LH
  26. INSTALL FLOOR CARPET BRACKET RH
  27. INSTALL SHIFT LEVER ASSEMBLY  ( INSTALLATION )
  28. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY  ( INSTALLATION )
  29. INSTALL NO. 2 CONSOLE BOX DUCT  ( INSTALLATION )
  30. INSTALL NO. 3 CONSOLE BOX DUCT  ( INSTALLATION )
  31. INSTALL REAR CONSOLE BOX ASSEMBLY  ( INSTALLATION )
  32. INSTALL CONSOLE REAR END PANEL SUB-ASSEMBLY  ( INSTALLATION )
  33. INSTALL CONSOLE BOX CARPET  ( INSTALLATION )
  34. INSTALL CONSOLE BOX POCKET  ( INSTALLATION )
  35. INSTALL HEATER SEAT SWITCH CONSOLE BASE (w/o Seat Heater System)  ( INSTALLATION )
  36. INSTALL HEATER SEAT SWITCH CONSOLE BASE (w/ Seat Heater System)  ( INSTALLATION )
  37. INSTALL UPPER CONSOLE PANEL ASSEMBLY WITH FRONT ASH RECEPTACLE  ( INSTALLATION )
  38. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY  ( INSTALLATION )
  39. INSTALL INSTRUMENT PANEL FINISH PANEL END LH  ( INSTALLATION )
  40. INSTALL INSTRUMENT PANEL FINISH PANEL END RH  ( INSTALLATION )
  41. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY LH
    1. Engage the claw and 5 clips, and install the roof side inner garnish assembly LH.
      Fig 22: Identifying Roof Side Inner Garnish Assembly LH And Clips
      G05254666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. INSTALL REAR SEAT SIDE GARNISH LH (w/o Rear Seat Side Airbag)
    1. Install the 4 claws and install the rear seat side garnish LH.
    Fig 23: Identifying Rear Seat Side Garnish LH And Claws
    G05254665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. INSTALL REAR SEAT SIDE AIRBAG ASSEMBLY LH (w/ Rear Seat Side Airbag)  ( INSTALLATION )
  44. INSTALL UPPER CENTER PILLAR GARNISH LH
    1. Engage the clip.
    2. Install the upper center pillar garnish LH with the 2 screws.
      Fig 24: Installing Upper Center Pillar Garnish LH
      G05254710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. INSTALL LOWER CENTER PILLAR GARNISH LH
    1. Engage the 5 clips and 2 claws, and install the lower center pillar garnish LH.
      Fig 25: Installing Lower Center Pillar Garnish LH, Clips And Claws
      G05254711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. INSTALL REAR DOOR SCUFF PLATE LH
    1. Engage the 8 claws, then install the rear door scuff plate LH.
      Fig 26: Identifying Rear Door Scuff Plate LH And Claws
      G05254661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  47. INSTALL FRONT PILLAR GARNISH LH
    1. Remove the protective cover.

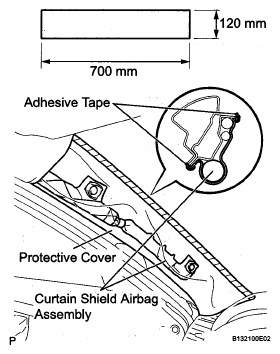

      Fig 27: Identifying Front Pillar Garnish LH
      G05254713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install a new clip < A > on the front pillar garnish LH.
    3. Engage the claw and 2 clips, then install the front pillar garnish LH.
      Fig 28: Installing Side Instrument Panel LH
      G05254714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. INSTALL SIDE INSTRUMENT PANEL LH  ( INSTALLATION )
  49. INSTALL FRONT DOOR OPENING TRIM COVER LH
    1. Engage the 3 claws and install the front door opening trim cover LH.
      Fig 29: Identifying Front Door Opening Trim Cover LH And Claws
      G05254658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  50. INSTALL FRONT DOOR SCUFF PLATE LH
    1. Engage the 12 claws, and install the front door scuff plate LH.
    Fig 30: Identifying Front Door Scuff Plate LH And Claws
    G05254657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  51. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  52. INSTALL REAR SEAT SIDE GARNISH RH (w/o Rear Seat Side Airbag)

    HINT:

    Use the same procedure for the RH side and the LH side.

  53. INSTALL REAR SEAT SIDE AIRBAG ASSEMBLY RH (w/ Rear Seat Side Airbag)

    HINT:

    Use the same procedure for the RH side and the LH side.

  54. INSTALL UPPER CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  55. INSTALL LOWER CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  56. INSTALL REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  57. INSTALL FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  58. INSTALL SIDE INSTRUMENT PANEL RH  ( INSTALLATION )
  59. INSTALL FRONT DOOR OPENING TRIM COVER RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  60. INSTALL FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  61. INSTALL FRONT SEAT ASSEMBLY LH  ( INSTALLATION )
  62. INSTALL FRONT SEAT REAR OUTER TRACK BRACKET COVER LH  ( INSTALLATION )
  63. INSTALL FRONT SEAT REAR INNER TRACK BRACKET COVER LH  ( INSTALLATION )
  64. INSTALL FRONT SEAT OUTER TRACK BRACKET COVER LH  ( INSTALLATION )
  65. INSTALL FRONT SEAT INNER TRACK BRACKET COVER LH  ( INSTALLATION )
  66. CONNECT FRONT SEAT OUTER BELT ASSEMBLY LH  ( INSTALLATION )
  67. INSTALL SEAT BELT ANCHOR COVER CAP LH  ( INSTALLATION )
  68. INSTALL FRONT SEAT HEADREST ASSEMBLY (for Driver Seat)
  69. INSTALL FRONT SEAT ASSEMBLY RH  ( INSTALLATION )
  70. INSTALL FRONT SEAT REAR OUTER TRACK BRACKET COVER RH  ( INSTALLATION )
  71. INSTALL FRONT SEAT REAR INNER TRACK BRACKET COVER RH  ( INSTALLATION )
  72. INSTALL FRONT SEAT OUTER TRACK BRACKET COVER RH  ( INSTALLATION )
  73. INSTALL FRONT SEAT INNER TRACK BRACKET COVER RH  ( INSTALLATION )
  74. CONNECT FRONT SEAT OUTER BELT ASSEMBLY RH  ( INSTALLATION )
  75. INSTALL SEAT BELT ANCHOR COVER CAP RH  ( INSTALLATION )
  76. INSTALL FRONT SEAT HEADREST ASSEMBLY (for Front Passenger Seat)
  77. INSTALL REAR SEATBACK ASSEMBLY  ( INSTALLATION )
  78. INSTALL REAR CENTER SEAT HEADREST ASSEMBLY
  79. INSTALL REAR SEAT HEADREST ASSEMBLY
  80. INSTALL REAR SEAT CUSHION ASSEMBLY  ( INSTALLATION )
  81. PERFORM INITIALIZATION
    NOTE: Some systems need initialization after reconnecting the cable to the negative battery terminal ( INITIALIZATION ).
  82. INSPECT SHIFT LEVER POSITION  ( ADJUSTMENT )
  83. ADJUST SHIFT LEVER POSITION  ( ADJUSTMENT )
  84. INSPECT FRONT SEAT ASSEMBLY  ( INSTALLATION )
  85. INSPECT SRS WARNING LIGHT

    ( DIAGNOSIS SYSTEM )

scientia non olet · About LEMON Manuals
