Camshaft Timing Oil Control Valve Assembly: Components

Fig 1: Camshaft Timing Oil Control Valve Assembly Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

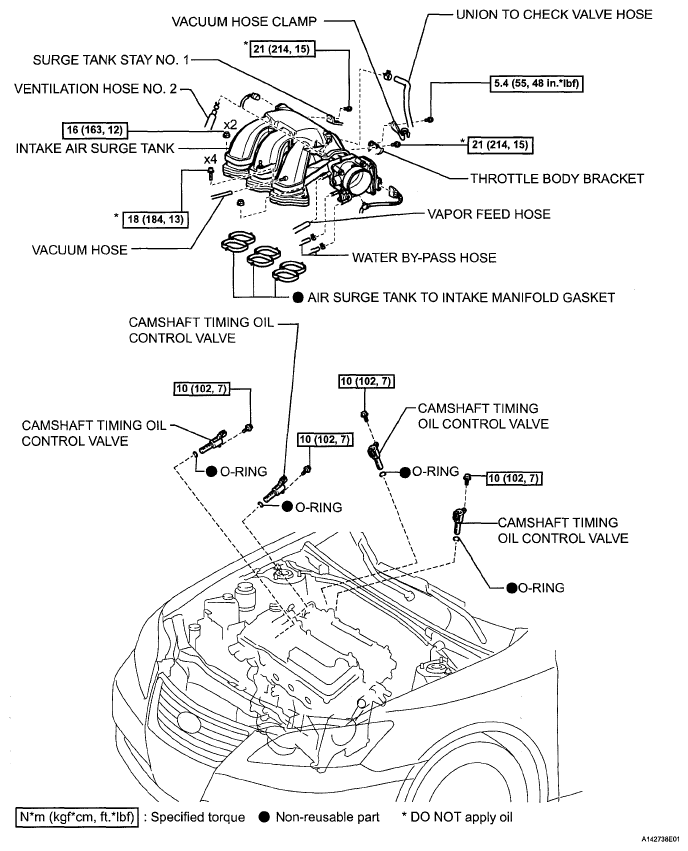

Fig 2: Camshaft Timing Oil Control Valve Assembly Replacement Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
