Home >> Lexus >> 2008 >> ES 350 >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System - System & Component Testing, Removal, Inspection & Installation >> Air Intake Control Circuit >> Wiring Diagram

Air Intake Control Circuit: Wiring Diagram

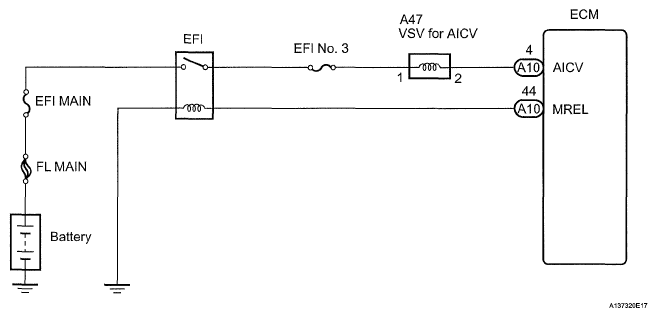

Fig 1: Air Intake Control - Wiring Diagram

G05835595

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
