DTC P16A0 G Sensor Circuit: Wiring Diagram

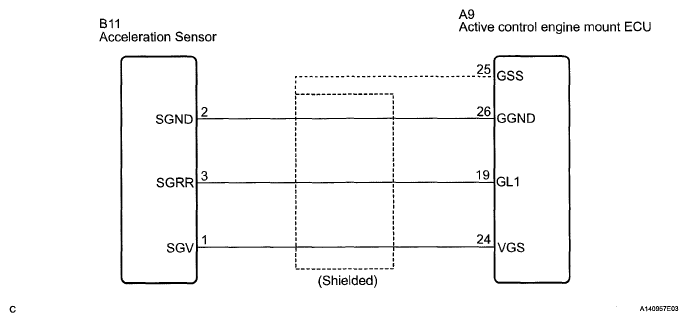

Fig 1: G Sensor - Wiring Diagram

G05247898

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
