Roof Headlining: Removal

  1. REMOVE REAR SEAT CUSHION ASSEMBLY  ( REMOVAL )
  2. REMOVE REAR SEAT HEADREST ASSEMBLY
  3. REMOVE REAR CENTER SEAT HEADREST ASSEMBLY
  4. REMOVE REAR SEATBACK ASSEMBLY  ( REMOVAL )
  5. REMOVE SEAT BELT ANCHOR COVER CAP LH  ( REMOVAL )
  6. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY LH  ( REMOVAL )
  7. REMOVE FRONT SEAT HEADREST ASSEMBLY (for Driver Seat)
  8. REMOVE FRONT SEAT OUTER TRACK BRACKET COVER LH  ( REMOVAL )
  9. REMOVE FRONT SEAT INNER TRACK BRACKET COVER LH  ( REMOVAL )
  10. REMOVE FRONT SEAT REAR OUTER TRACK BRACKET COVER LH  ( REMOVAL )
  11. REMOVE FRONT SEAT REAR INNER TRACK BRACKET COVER LH  ( REMOVAL )
  12. REMOVE FRONT SEAT ASSEMBLY LH  ( REMOVAL )
  13. REMOVE SEAT BELT ANCHOR COVER CAP RH  ( REMOVAL )
  14. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY RH  ( REMOVAL )
  15. REMOVE FRONT SEAT HEADREST ASSEMBLY (for Front Passenger Seat)
  16. REMOVE FRONT SEAT OUTER TRACK BRACKET COVER RH  ( REMOVAL )
  17. REMOVE FRONT SEAT INNER TRACK BRACKET COVER RH  ( REMOVAL )
  18. REMOVE FRONT SEAT REAR OUTER TRACK BRACKET COVER RH  ( REMOVAL )
  19. REMOVE FRONT SEAT REAR INNER TRACK BRACKET COVER RH  ( REMOVAL )
  20. REMOVE FRONT SEAT ASSEMBLY RH  ( REMOVAL )
  21. REMOVE FRONT DOOR SCUFF PLATE LH
    1. Disengage the 12 claws and remove the front door scuff plate LH.
      Fig 1: Identifying Front Door Scuff Plate LH And Claws
      G05254657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE FRONT DOOR OPENING TRIM COVER LH
    1. Disengage the 3 claws and remove the front door opening trim cover LH.
    Fig 2: Identifying Front Door Opening Trim Cover LH And Claws
    G05254658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE SIDE INSTRUMENT PANEL LH  ( REMOVAL )
  24. REMOVE FRONT PILLAR GARNISH LH
    1. Pull the upper portion of the garnish towards the inside of the cabin and disengage the 2 clips.
    2. Cut off clip < A >.
    3. Disengage the claw and remove the front pillar garnish LH.
    4. Remove clip < A > from the vehicle body.
      Fig 3: Locating Front Pillar Garnish LH
      G05254659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Protect the curtain shield airbag assembly.
      1. Thoroughly cover the airbag with a cloth or nylon sheet and fix the ends of the cover with adhesive tape, as shown in the illustration.
        NOTE: Cover the curtain shield airbag with a protective cover as soon as the front pillar garnish is removed.
        Fig 4: Positions For Covering Curtain Shield Airbag Assembly
        G04982068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE REAR DOOR SCUFF PLATE LH
    1. Disengage the 8 claws and remove the rear door scuff plate LH.
      Fig 5: Identifying Rear Door Scuff Plate LH And Claws
      G05254661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE LOWER CENTER PILLAR GARNISH LH
    1. Disengage the 2 claws and 5 clips, and remove the lower center pillar garnish LH.
      Fig 6: Identifying Lower Center Pillar Garnish LH And Claws
      G05254662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE UPPER CENTER PILLAR GARNISH LH
    1. Remove the 2 screws.
      Fig 7: Removing Upper Center Pillar Garnish LH
      G05254663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull the lower part of the pillar garnish toward the inside of the vehicle.
    3. Using a clip remover, disengage the clip and remove the upper center pillar garnish LH.

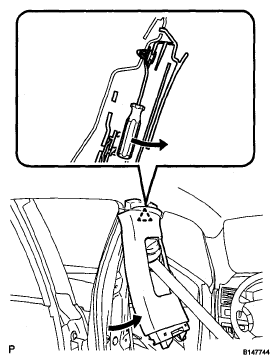

      Fig 8: Pulling Lower Part Of Pillar Garnish
      G05254664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE REAR SEAT SIDE GARNISH LH (w/o Rear Seat Side Airbag)
    1. Disengage the 4 claws and rear seat side garnish LH.
    Fig 9: Identifying Rear Seat Side Garnish LH And Claws
    G05254665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE REAR SEAT SIDE AIRBAG ASSEMBLY LH (w/ Rear Seat Side Airbag)  ( INSTALLATION )
  30. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH
    1. Disengage the 5 clips and claw, and remove the roof side inner garnish assembly LH.
    Fig 10: Identifying Roof Side Inner Garnish Assembly LH And Clips
    G05254666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  32. REMOVE FRONT DOOR OPENING TRIM COVER RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  33. REMOVE SIDE INSTRUMENT PANEL RH  ( REMOVAL )
  34. REMOVE FRONT PILLAR GARNISH RH
    1. Pull the upper portion of the garnish towards the inside of the cabin and disengage the 2 clips.
    2. Cut off clip < A >.
    3. Disengage the claw and remove the front pillar garnish RH.
    4. Remove the clip < A > from the vehicle body.
      Fig 11: Removing Front Pillar Garnish RH
      G05254667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Protect the curtain shield airbag assembly.
      1. Thoroughly cover the airbag with a cloth or nylon sheet and fix the ends of the cover with adhesive tape, as shown in the illustration.
        NOTE: Cover the curtain shield airbag with a protective cover as soon as the front pillar garnish is removed.
      Fig 12: Positions For Covering Curtain Shield Airbag Assembly
      G04982070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  36. REMOVE LOWER CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  37. REMOVE UPPER CENTER PILLAR GARNISH RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  38. REMOVE REAR SEAT SIDE GARNISH RH (w/o Rear Seat Side Airbag)

    HINT:

    Use the same procedure for the RH side and the LH side.

  39. REMOVE REAR SEAT SIDE AIRBAG ASSEMBLY RH (w/ Rear Seat Side Airbag)

    HINT:

    Use the same procedure for the RH side and the LH side.

  40. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  41. REMOVE INSTRUMENT PANEL FINISH PANEL END LH  ( REMOVAL )
  42. REMOVE INSTRUMENT PANEL FINISH PANEL END RH  ( REMOVAL )
  43. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY  ( REMOVAL )
  44. REMOVE UPPER CONSOLE PANEL ASSEMBLY WITH FRONT ASH RECEPTACLE  ( REMOVAL )
  45. REMOVE HEATER SEAT SWITCH CONSOLE BASE (w/o Seat Heater System)  ( REMOVAL )
  46. REMOVE HEATER SEAT SWITCH CONSOLE BASE (w/ Seat Heater System)  ( REMOVAL )
  47. REMOVE CONSOLE BOX POCKET  ( REMOVAL )
  48. REMOVE CONSOLE BOX CARPET  ( REMOVAL )
  49. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY  ( REMOVAL )
  50. REMOVE REAR CONSOLE BOX ASSEMBLY  ( REMOVAL )
  51. REMOVE NO. 2 CONSOLE BOX DUCT  ( REMOVAL )
  52. REMOVE NO. 3 CONSOLE BOX DUCT  ( REMOVAL )
  53. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY  ( REMOVAL )
  54. REMOVE SHIFT LEVER ASSEMBLY  ( REMOVAL )
  55. REMOVE FLOOR CARPET BRACKET LH  ( REMOVAL )
  56. REMOVE FLOOR CARPET BRACKET RH  ( REMOVAL )
  57. REMOVE LUGGAGE COMPARTMENT FLOOR MAT (w/ DVD Player)
  58. REMOVE SPARE WHEEL COVER TRAY (w/ DVD Player)
  59. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY (w/ DVD Player)  ( DISASSEMBLY )
  60. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (w/ DVD Player)  ( DISASSEMBLY )
  61. REMOVE REAR FLOOR FINISH PLATE (w/ DVD Player)  ( DISASSEMBLY )
  62. REMOVE LUGGAGE COMPARTMENT INNER TRIM COVER RH (w/ DVD Player)  ( DISASSEMBLY )
  63. DISCONNECT STEREO COMPONENT AMPLIFIER ASSEMBLY CONNECTOR (w/ DVD Player)
    1. Disconnect the stereo component amplifier assembly connector.
    Fig 13: Locating Stereo Component Amplifier Assembly Connector
    G05254669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  64. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER  ( REMOVAL )
  65. REMOVE RAIN SENSOR COVER (w/ Rain Sensor)  ( REMOVAL )
  66. REMOVE ROOF CONSOLE BOX ASSEMBLY
    1. Using a screwdriver, disengage the 2 claws and open the 2 covers.

      HINT:

      Tape the screwdriver tip before use.

      Fig 14: Identifying Roof Console Box Assembly
      G05253518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws.
      Fig 15: Identifying Roof Console Box Assembly And Screws
      G05254671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a molding remover, disengage the 2 clips.
    4. Disconnect the connectors and remove the roof console box assembly.
      Fig 16: Removing Roof Console Box Assembly
      G05254672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  67. REMOVE VISOR BRACKET COVER
    1. Using a molding remover, disengage the 4 claws and remove the visor bracket cover.

      HINT:

      Use the same procedure to remove the cover on the other side.

      Fig 17: Identifying Visor Bracket Cover
      G05254673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  68. REMOVE VISOR ASSEMBLY LH
    1. Remove the 2 screws and visor assembly LH.
    Fig 18: Identifying Visor Assembly RH And Screws
    G05254674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  69. REMOVE VISOR ASSEMBLY RH

    HINT:

    Use the same procedure for the RH side and the LH side.

  70. REMOVE VISOR HOLDER
    1. Remove the visor holder by turning it counterclockwise.

      HINT:

      Use the same procedure to remove the hook on the other side.

      Fig 19: Removing Visor Holder
      G05254675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  71. REMOVE COAT HOOK
    1. Remove the screw and coat hook.

      HINT:

      Use the same procedure to remove the coat hook on the other side.

      Fig 20: Identifying Coat Hook
      G05254676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  72. REMOVE SPOT LIGHT ASSEMBLY (for Standard)
    1. Using a molding remover, disengage the 2 clips.
    2. Disconnect the connector and remove the spot light assembly.

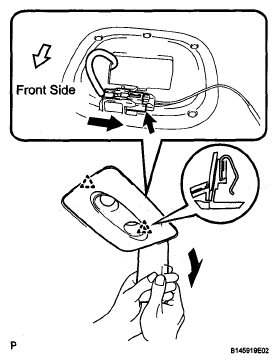

      Fig 21: Identifying Spot Light Assembly (For Standard)
      G05254677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  73. REMOVE SPOT LIGHT ASSEMBLY (for Glass Roof)
    1. Using a molding remover, disengage the 2 clips.
    2. Disconnect the connector and remove the spot light assembly.

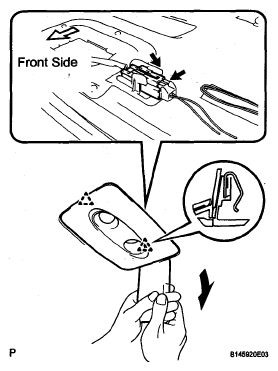

      Fig 22: Locating Spot Light Assembly (For Glass Roof)
      G05254678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  74. REMOVE ASSIST GRIP SUB-ASSEMBLY
    1. Using a screwdriver, disengage the 4 claws and remove the 2 assist grip covers.

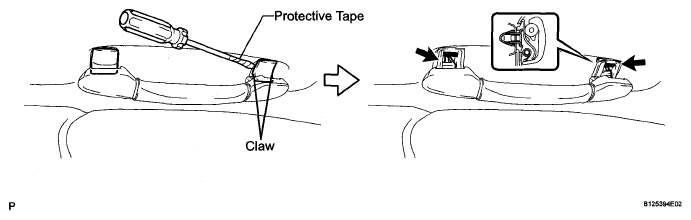

      Fig 23: Removing Assist Grip Sub-Assembly
      G05254679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Tape the screwdriver tip before use.

    2. Disengage the 2 clips and remove the assist grip sub-assembly.

      HINT:

      Use the same procedure for the other 3 assist grips.

  75. REMOVE ROOF HEADLINING ASSEMBLY (for Standard)
    1. Disconnect the No. 1 roof wire connector and disengage each clamp from the front pillar LH.
    2. Disconnect the antenna cord sub-assembly connector and disengage each clamp from the front pillar RH.
    3. Disconnect the antenna cord sub-assembly connector and disengage the clamp from the rear pillar RH.
    4. Disengage the 12 claws, 4 clips, and 11 fasteners.
      Fig 24: Identifying Roof Headlining, Clip And Claws
      G05254680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the roof headlining assembly from the vehicle through the front right door.
  76. REMOVE ROOF HEADLINING ASSEMBLY (for Glass Roof)
    1. Disconnect the No. 1 roof wire connector and disengage each clamp from the front pillar LH.
    2. Disconnect the antenna cord sub-assembly connector and disengage the clamp from the rear pillar RH.
      Fig 25: Removing Roof Headlining Assembly Through Front Right Door
      G05254681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 12 claws, 4 clips, and 21 fasteners.
      Fig 26: Locating Claws, Clips And Fasteners
      G05254682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the roof headlining assembly from the vehicle through the front right door.
    Fig 27: Removing Roof Headlining Assembly Through Front Right Door
    G05254683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  77. REMOVE ANTENNA CORD SUB-ASSEMBLY  ( REMOVAL )
  78. REMOVE VANITY LIGHT ASSEMBLY
    1. Disengage the 2 claws and separate the bulb holder from the vanity light assembly as shown in the illustration.
    2. Disengage the claw and remove the vanity light assembly.

      HINT:

      Use the same procedure to remove the light on the other side.

      Fig 28: Removing Vanity Light Assembly
      G05254684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

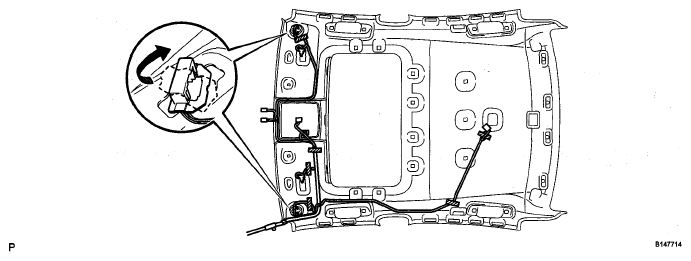

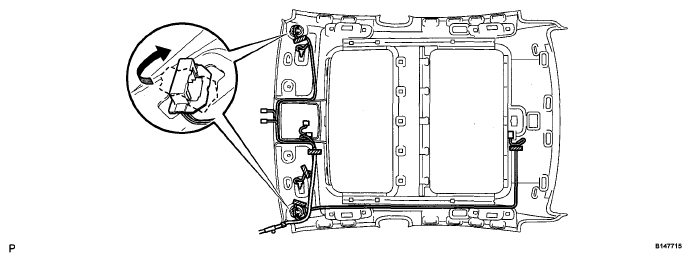

  79. REMOVE NO. 1 ROOF WIRE (for Standard)
    1. Turn the visor connectors clockwise approximately 90° and separate the connectors from the roof headlining assembly.
    2. Remove the adhesive tape from the roof headlining assembly.
    3. Remove the No. 1 roof wire from the roof headlining assembly.
    4. Remove the double-sided tape from the roof headlining assembly.
    Fig 29: Turning Visor Connectors
    G05254685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  80. REMOVE NO. 1 ROOF WIRE (for Glass Roof)
    1. Turn the visor connectors clockwise approximately 90° and separate the connectors from the roof headlining assembly.
    2. Remove the adhesive tape from the roof headlining assembly.
    3. Remove the No. 1 roof wire from the roof headlining assembly.
    4. Remove the double-sided tape from the roof headlining assembly.
      Fig 30: Removing Double-Sided Tape And Roof Headlining Assembly
      G05254686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
scientia non olet · About LEMON Manuals
