Inspection Procedure

INSPECT ELECTRICAL KEY OSCILLATOR

Disconnect the oscillator connectors.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Front LH side

VOLTAGE SPECIFICATION CHART

Tester Connection (Symbols)	Condition	Specified Condition
a2-1 (B) - a2-7 (GND)	Always	10 to 14 V

Front RH side

VOLTAGE SPECIFICATION CHART

Tester Connection (Symbols)	Condition	Specified Condition
Z2-1 (B) - Z2-7(GND)	Always	10 to 14 V

Fig 1: Identifying Oscillator Connectors

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Rear LH side

VOLTAGE SPECIFICATION CHART

Tester Connection (Symbols)	Condition	Specified Condition
c2-1 (B) - c2-7 (GND)	Always	10 to 14 V

Rear RH side

VOLTAGE SPECIFICATION CHART

Tester Connection (Symbols)	Condition	Specified Condition
b2-1 (B) - b2-7 (GND)	Always	10 to 14 V

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

CHECK HARNESS AND CONNECTOR (ELECTRICAL KEY OSCILLATOR CERTIFICATION - ECU)

Disconnect the E13 and E14 ECU connectors.

Measure the resistance according to the value(s) in the table below.

Standard resistance:

Front LH side

RESISTANCE SPECIFICATION CHART

Tester Connection (Symbols)	Condition	Specified Condition
E13-33 (CLG1) - a2-10 (CLG)	Always	Below 1 Ω
E13-34 (CG1B) - a2-5 (CLGB)	Always	Below 1 Ω
E13-33 (CLG1) - Body ground	Always	10 kΩ or higher
E13-34 (CG1B) - Body ground	Always	10 kΩ or higher

Front RH side

RESISTANCE SPECIFICATION CHART

Tester Connection (Symbols)	Condition	Specified Condition
E13-35 (CLG2) - Z2-10 (CLG)	Always	Below 1 Ω
E13-36 (CG2B) - Z2-5 (CLGB)	Always	Below 1 Ω
E13-35 (CLG2) - Body ground	Always	10 kΩ or higher
E13-36 (CG2B) - Body ground	Always	10 kΩ or higher

Rear LH side

RESISTANCE SPECIFICATION CHART

Tester Connection (Symbols)	Condition	Specified Condition
E14-8 (CLG3) - C2-10 (CLG)	Always	Below 1 Ω
E14-9 (CG3B) - C2-5 (CLGB)	Always	Below 1 Ω
E14-8 (CLG3) - Body ground	Always	10 kΩ or higher
E14-9 (CG3B) - Body ground	Always	10 kΩ or higher

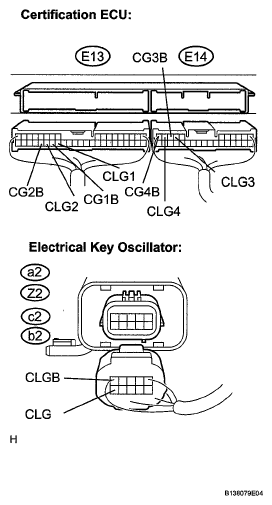

Fig 2: Identifying E13, E14 ECU Connectors And Oscillator Certification Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Rear RH side

RESISTANCE SPECIFICATION CHART

Tester Connection (Symbols)	Condition	Specified Condition
E14-10 (CLG4) - b2-10 (CLG)	Always	Below 1 Ω
E14-11 (CG4B) - b2-5 (CLGB)	Always	Below 1 Ω
E14-10 (CLG4) - Body ground	Always	10 kΩ or higher
E14-11 (CG4B) - Body ground	Always	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

CHECK AND REPLACE ELECTRICAL KEY OSCILLATOR (CHECK OPERATION OF OSCILLATOR)
1. Replace the door oscillator.
2. Check that the entry LOCK/UNLOCK function operates normally.
  OK:

  Entry LOCK/UNLOCK function operates normally.
OK: END (ELECTRICAL KEY OSCILLATOR IS DEFECTIVE)

NG: Go to next step

PERFORM ACTIVE TEST BY TECHSTREAM (CERTIFICATION ECU OUTPUT SIGNAL)

Reconnect the ECU and the oscillator connectors.
Connect Techstream to the DLC3.
Turn the engine switch on (IG).
Turn the tester on.
Enter the following menus: Body Electrical / Smart Access / Active Test.

Perform the Active Test according to the display on the tester.

Smart Access:

SMART ACCESS ACTIVE TEST REFERENCE

Tester Display	Test Part	Control Range
D Transmitter	Driver door electrical key oscillator	ON/OFF
P Transmitter	Passenger door electrical key oscillator	ON/OFF
DR Transmitter	Rear door electrical key oscillator RH	ON/OFF
PR Transmitter	Rear door electrical key oscillator LH	ON/OFF

Measure the frequency according to the value(s) in the table below.

Standard:

Front LH side

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection (Symbols)	Condition	Specified Condition
E13-33 (CLG1) - E13-34 (CG1B)	During Active Test	Frequency is generated (higher than 0 Hz)

Front RH side

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection (Symbols)	Condition	Specified Condition
E13-35 (CLG2) - E13-36 (CG2B)	During Active Test	Frequency is generated (higher than 0 Hz)

Fig 3: Identifying E13 And E14 ECU Connectors

Rear LH side

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection (Symbols)	Condition	Specified Condition
E14-8 (CLG3) - E14-9 (CG3B)	During Active Test	Frequency is generated (higher than 0 Hz)

Rear RH side

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection (Symbols)	Condition	Specified Condition
E14-10 (CLG4) - E14-11 (CG4B)	During Active Test	Frequency is generated (higher than 0 Hz)

NG: REPLACE CERTIFICATION ECU

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
