Side Turn Signal Light Assembly: Installation

  1. INSTALL SIDE TURN SIGNAL LIGHT ASSEMBLY
    1. Connect the connector.
    2. Engage the 2 claws and install the side turn signal light assembly.

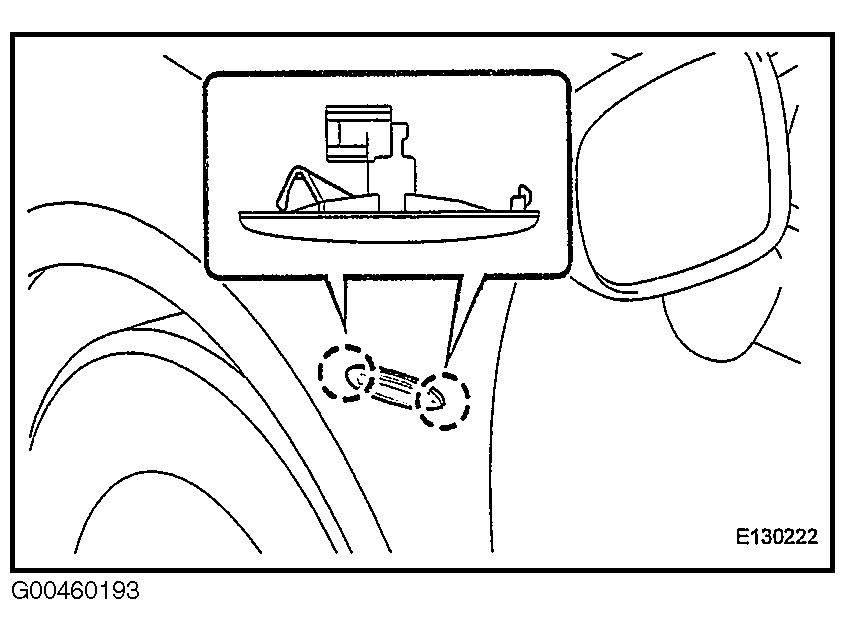

    2. Fig 1: Installing Side Turn Signal Light Assembly
    G00460193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
