Steering Angle Sensor Communication Stop Mode: Wiring Diagram

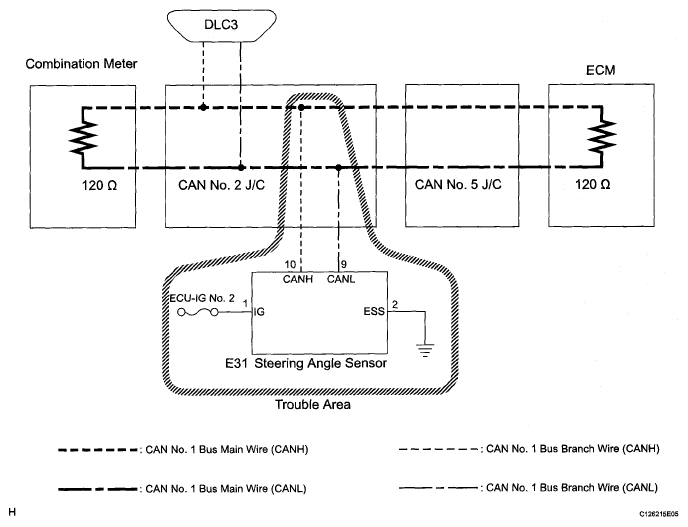

Fig 1: Steering Angle Sensor - Wiring Diagram

G05254953

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
