Unlock Position Sensor Signal Circuit: Wiring Diagram

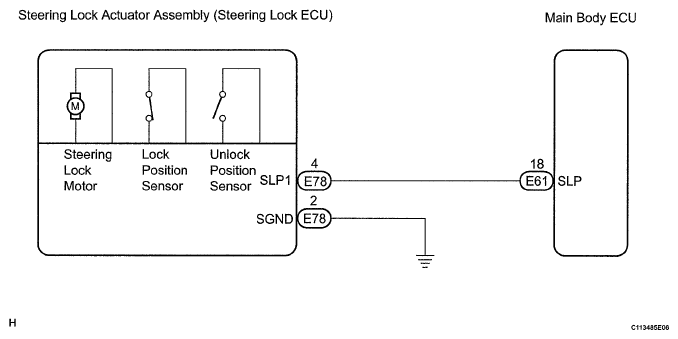

Fig 1: Unlock Position Sensor Signal Circuit - Wiring Diagram

G05836932

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
