System Diagram

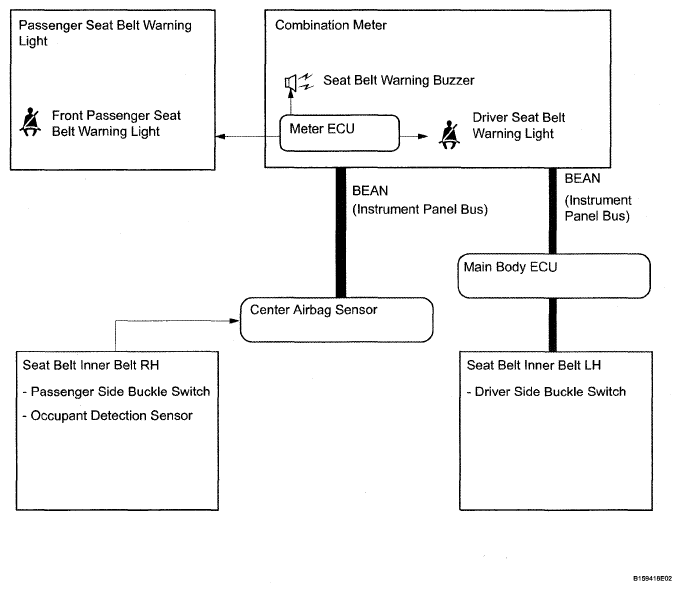

Fig 1: Seat Belt Warning System Diagram
G05292397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication table:

COMMUNICATION TABLE

Sender Receiver Signal Line
Main Body ECU Meter ECU Front seat inner belt switch signal (for driver side) BEAN
Center airbag sensor Meter ECU
  • Front seat inner belt switch signal (for passenger side)
  • Occupant detection signal
 BEAN
