Home >> Lexus >> 2007 >> SC 430 >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Supplemental Restraint System >> Steering Pad >> Components

Steering Pad: Components

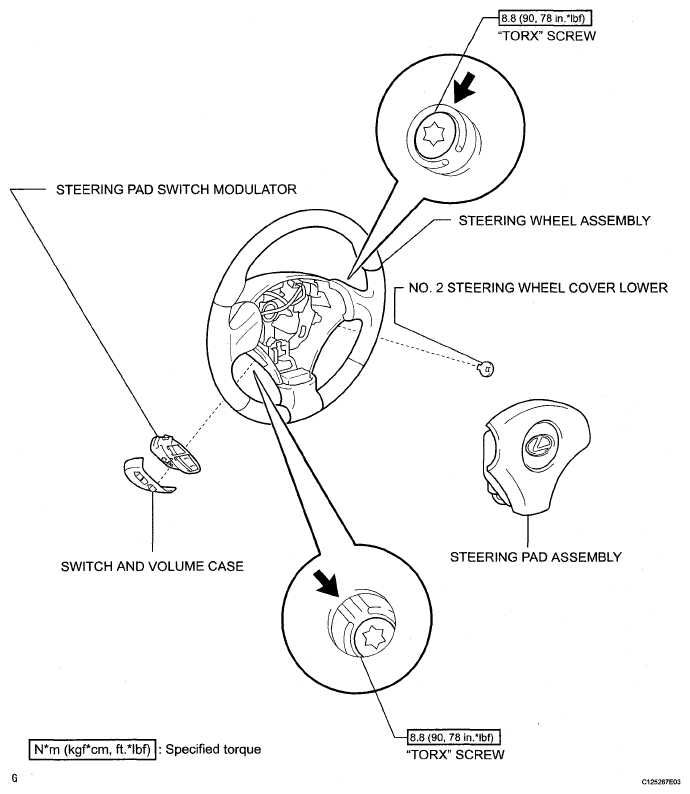

Fig 1: Steering Pad Replacement Components With Torque Specifications

G05292276

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
