Rear Airbag Sensor: Components

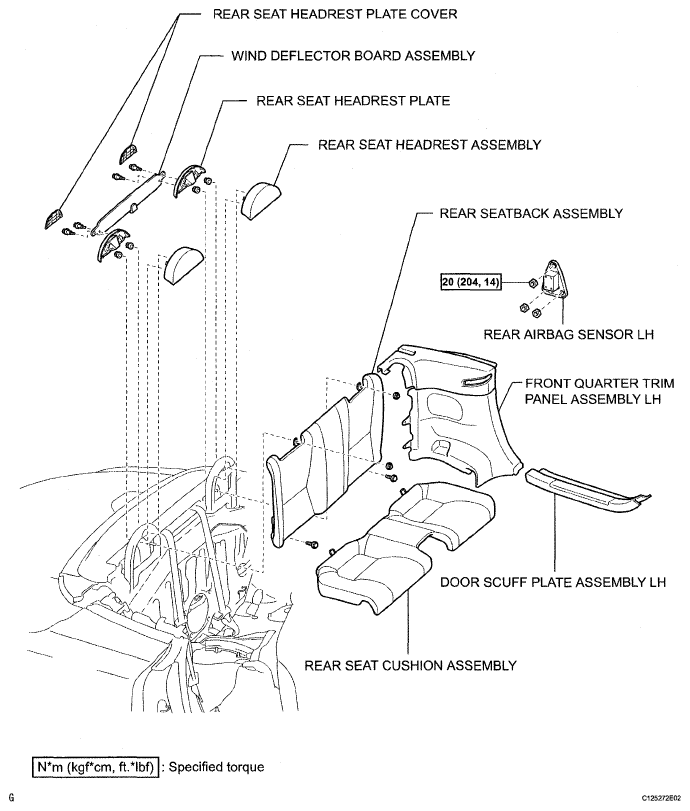

Fig 1: Rear Airbag Sensor Replacement Components With Torque Specifications

G05292376

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
