Initialization Of Front Seat Position & Seatback Angle (PD036-06)
Publication date: 2006-08-01Reference number: PD036-06
INITIALIZATION OF FRONT SEAT POSITION & SEATBACK ANGLE
TECHNICAL SERVICE BULLETIN
Reference Number(s): PD036-06, Date of Issue:
August 01, 2006
| LEXUS: | 2007 SC 430 |
| Section: | PRE-DELIVERY SERVICE |
| COPYRIGHT: | © 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002 |
Introduction
This bulletin explains the initialization procedure for the front seat position and the seatback angle on 2007 model year SC 430 vehicles.
To reduce parasitic current draw from the battery during transport and storage, the DCC fuse (15A) has been removed at the assembly plant. As a result of the removal of the DCC fuse, the following will be inoperative:
- Automatic seat adjustment.
- Driving position memory of the front seat.
It is necessary to initialize the front seat position and the seatback angle after the DCC fuse has been installed during Pre-Delivery Service (PDS) or whenever the battery terminal has been disconnected and reconnected.
NOTE:
Please refer to TSIB No. PD035-06, DCC FUSE INSTALLATION DURING PDS
for more information on fuse installation.
Applicable Vehicles
- 2007 model year SC 430 vehicles.
Warranty Information
WARRANTY INFORMATION
| OP CODE | DESCRIPTION | TIME | OFP | T1 | T2 |
|---|---|---|---|---|---|
| N/A | Not Applicable to Warranty | - | - | - | - |
Initialization Procedure

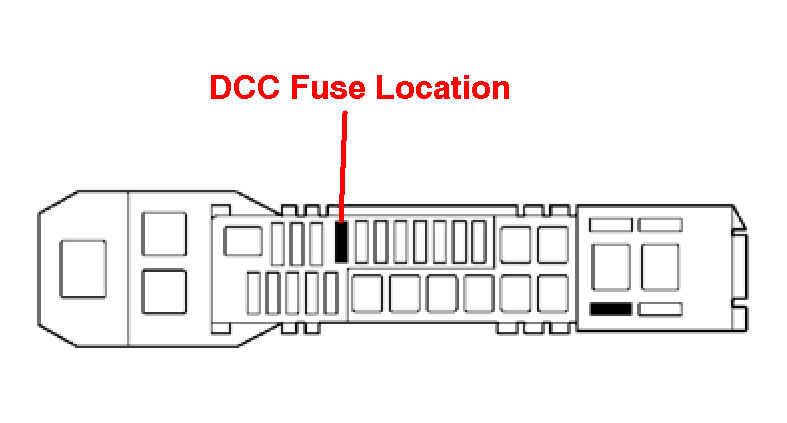

- Make sure the DCC fuse is installed in its original position (refer to TSIB No. PD035-06, DCC FUSE INSTALLATION DURING PDS
- Move the seat position control switch forward until a beeping sound is emitted.
- Move the seatback angle switch forward until a beeping sound is emitted.
- Move the seat to the rearmost position, recline the seatback all the way back, and check that the seat will move all the way forward.NOTE: Repeat the above procedure to initialize the passenger's seat position and seatback angle.
