Initial Calibration Of Compass During PDS (PD037-06)

INITIAL CALIBRATION OF COMPASS DURING PDS

TECHNICAL SERVICE BULLETIN

Introduction

2007 model year SC 430 vehicles without navigation system are equipped with a compass in the instrument cluster. Use the following procedure to complete initial calibration of the compass during the ROAD TEST section of Pre-Delivery Service (PDS).

Applicable Vehicles

• 2007  model year SC 430  vehicles without navigation system.

Warranty Information

OP CODE	DESCRIPTION	TIME	OFP	T1	T2
N/A	Not Applicable to Warranty	-	-	-	-

Initial Calibration Procedure

1. Turn the ignition switch to the "ON" position and check that the direction (N, NE, E, SE, S, SW, W, NW) appears on the compass display.

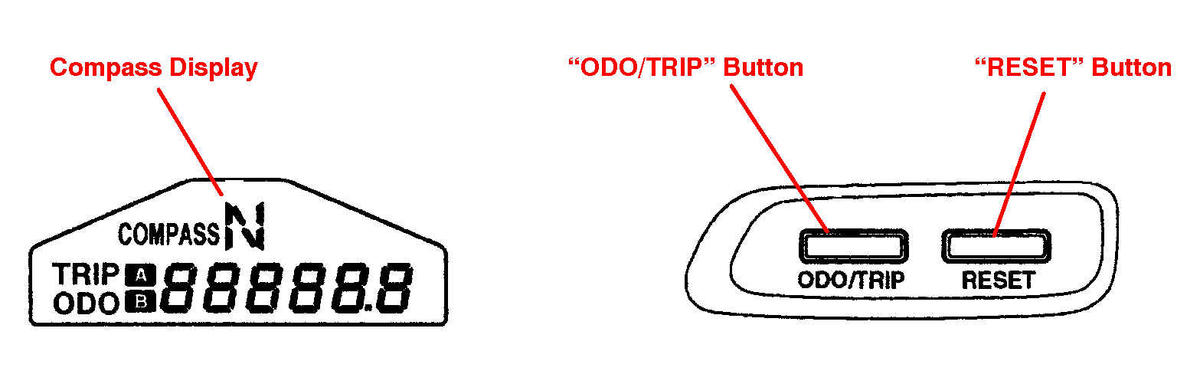

   Fig 2: Identifying Direction On Compass Display

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Push and hold the "ODO/TRIP" and "RESET" buttons simultaneously for 3 seconds or longer until the zone number (1-15) appears on the compass display. Then push the "RESET" button to select the number of zone where the vehicle is located.

   See the map below for zone reference.

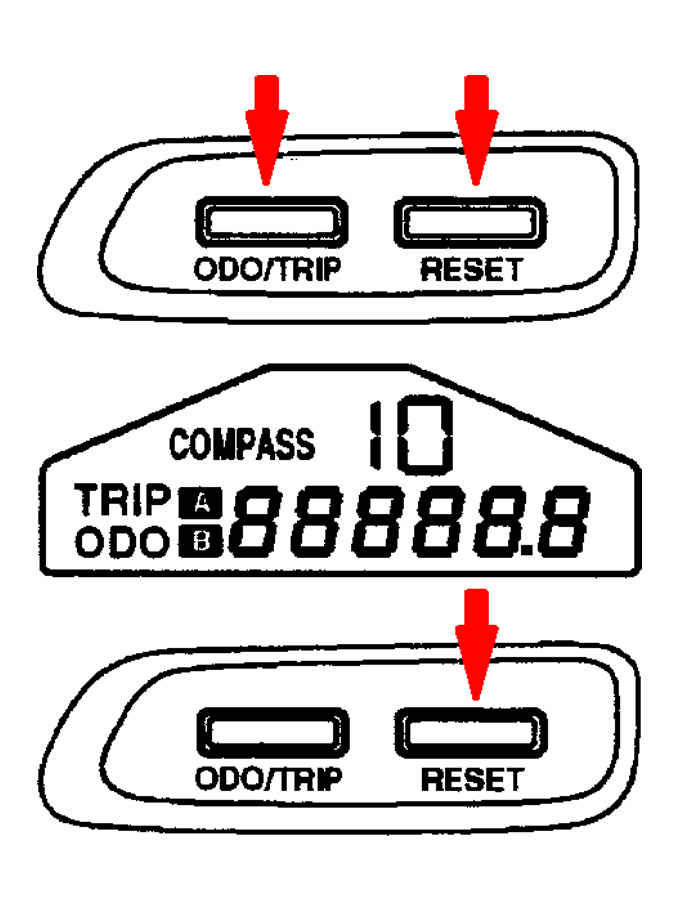

   Fig 3: Identifying "ODO/TRIP" & Reset Buttons

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

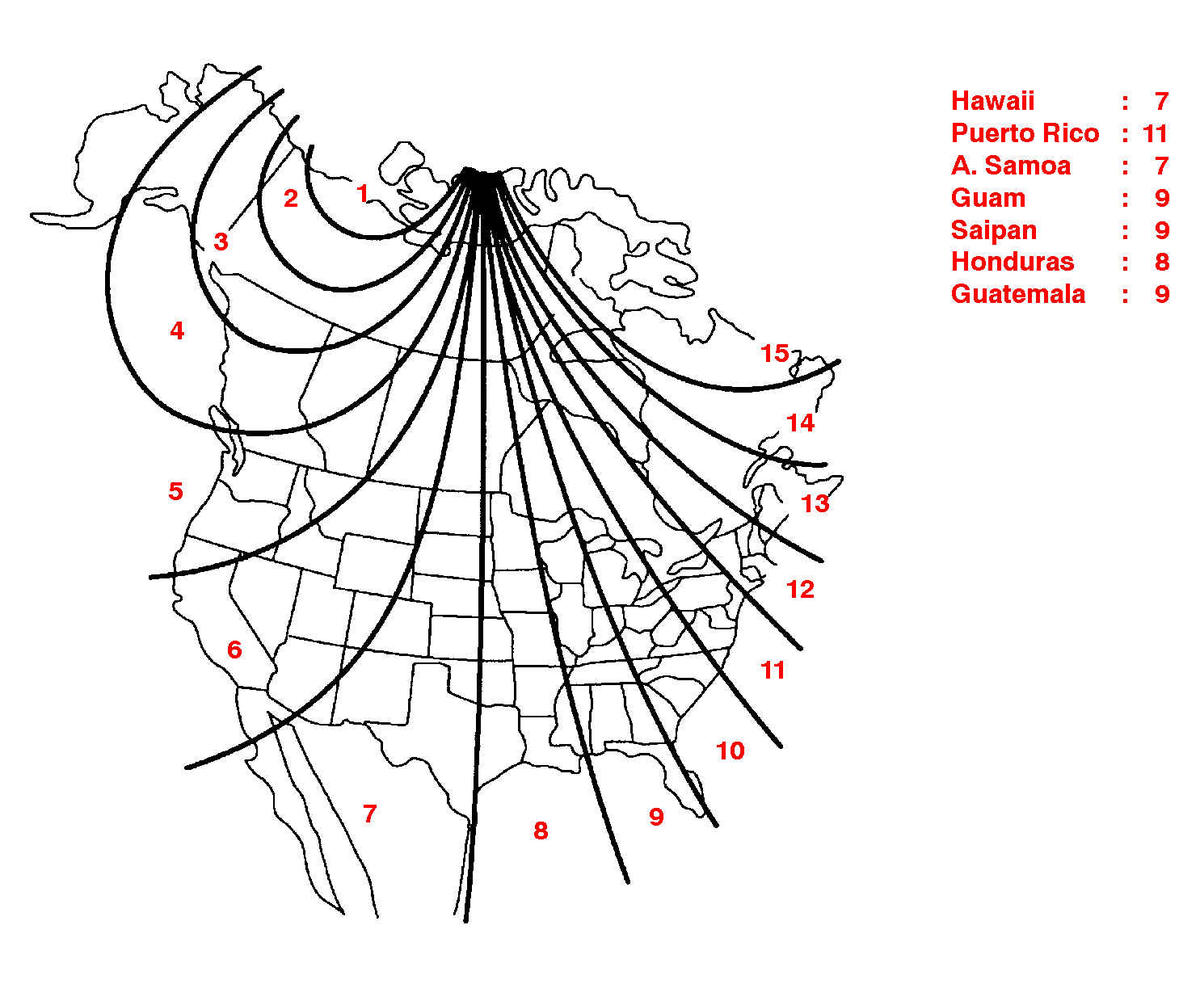

   Fig 4: Magnetic Zone Reference Graph

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Start the engine and push the "ODO/TRIP" button until the "-- --" blinks on the compass display.

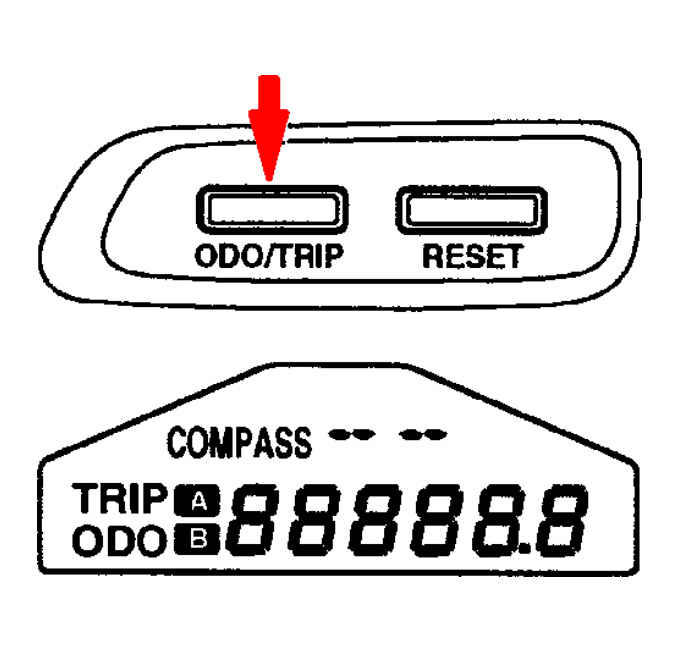

   Fig 5: Identifying "ODO/TRIP" Button

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Drive the vehicle slowly at 5 mph (8 km/h), or less, in a circle until the direction is displayed. If there is NOT enough space to drive in a circle, drive around the block until the direction is displayed. After driving 1 to 3 circles in the above method, calibration is complete with the direction shown on the display.
   Fig 6: Driving Vehicle In A Circle

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   After performing the above steps, calibration is complete.

   Fig 7: Identifying Calibrated Display

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   • Do NOT perform calibration of the compass in a place where the Earth's magnetic field is subject to interference by artificial magnetic fields (underground parking, under a steel tower, between buildings, roof parking, near a railroad crossing, near a large vehicle, etc.).
   • During calibration, do NOT operate electric systems (retractable hardtop, power windows, etc.) as they may interfere with the calibration.
   • To cancel the calibration before it is complete, push the "ODO/TRIP" button.
