DTC P0171 System Too Lean (Bank 1); DTC P0172 System Too Rich (Bank 1); DTC P0174 System Too Lean (Bank 2); DTC P0175 System Too Rich (Bank 2): Wiring Diagram

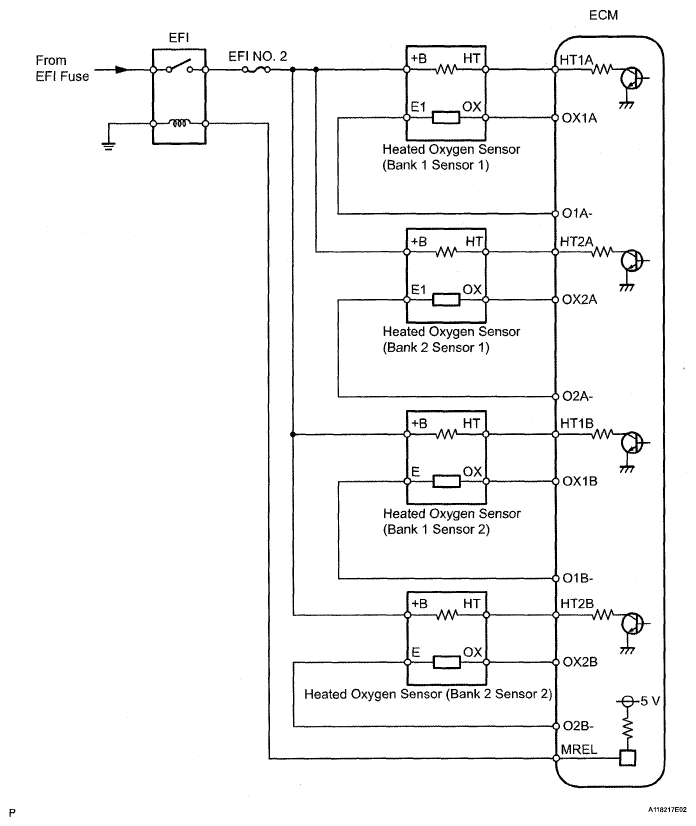

Fig 1: Heated Oxygen Sensor - Wiring Diagram
G05291382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
