Cooling System (Mechanical): Cooling: Thermostat: Components

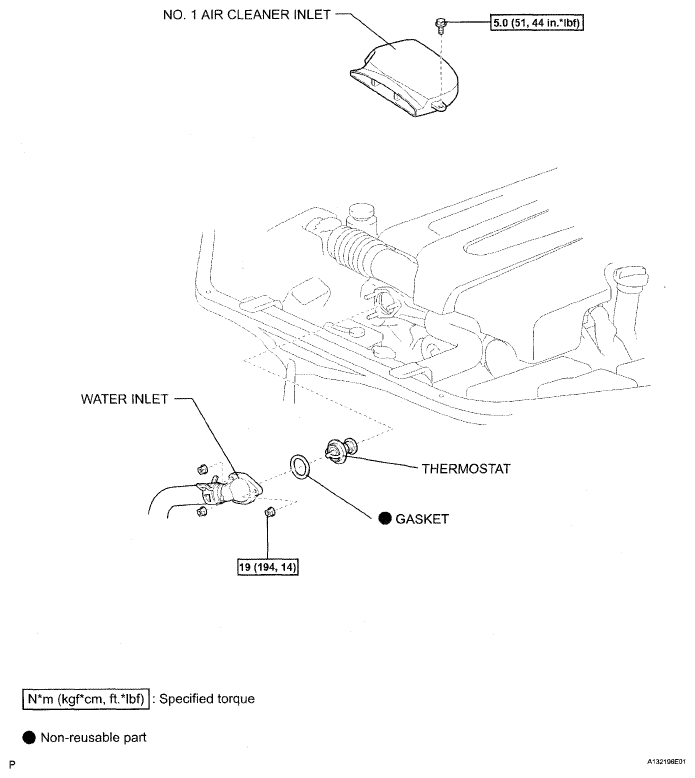

Fig 1: Thermostat Replacement Components With Torque Specifications

G05289320

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
