Repair and Diagnosis
>>
Electrical
>>
Gauges
>>
Meter
>>
Meter / Gauge System
>>
System Diagram
System Diagram

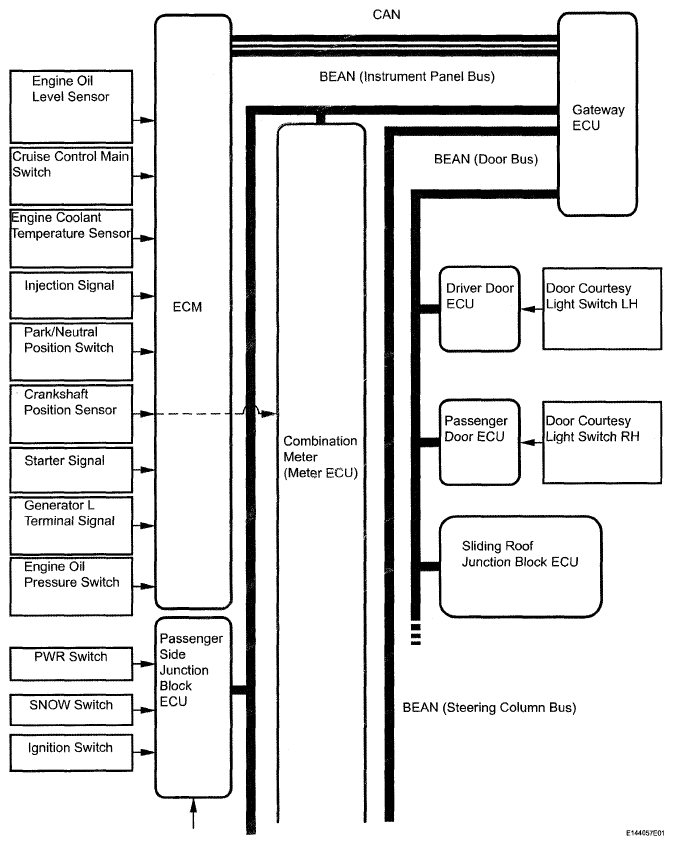

Fig 1: Meter / Gauge System Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

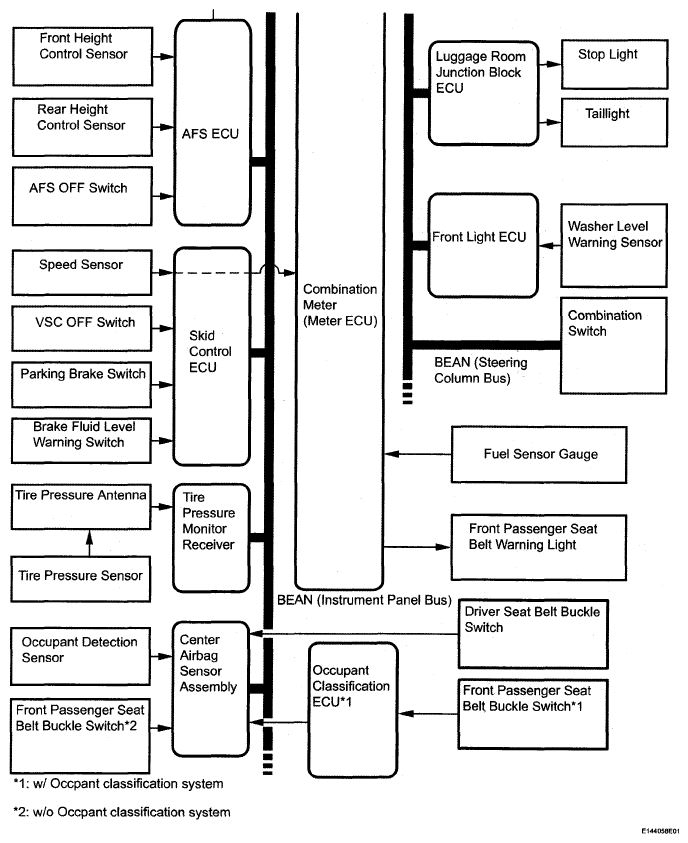

Fig 2: Meter / Gauge System Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
