Lexus
>>
2007
>>
SC 430
>>
Repair and Diagnosis
>>
Brakes
>>
Parking Brake System
>>
Parking Brake
>>
Parking Brake Assembly
>>
Components
Parking Brake Assembly: Components

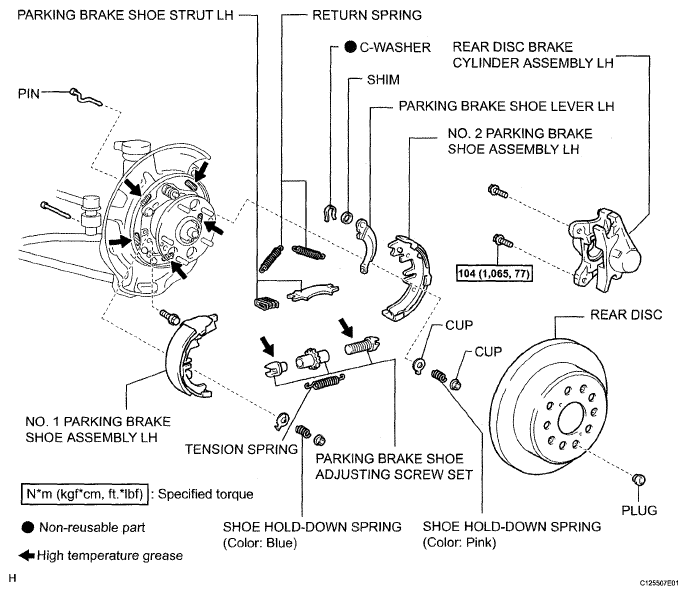

Fig 1: Parking Brake Assembly Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
