System Diagram

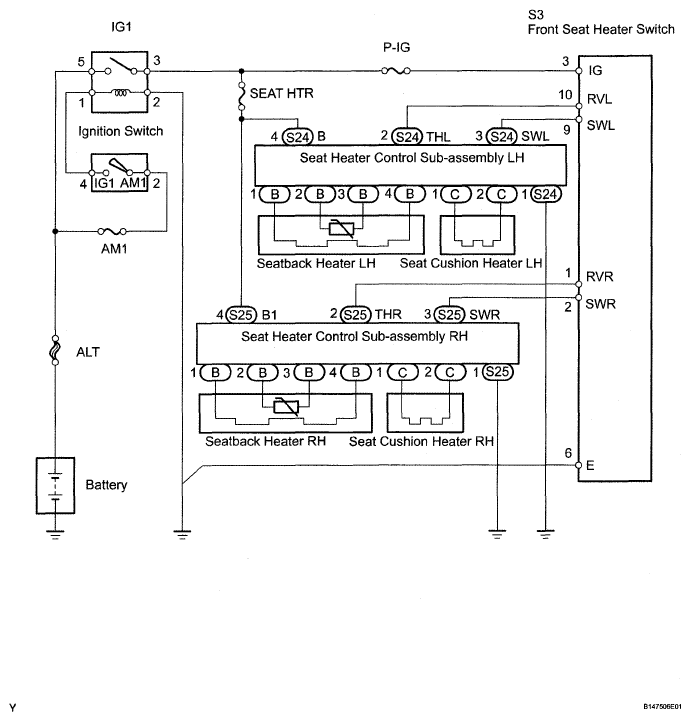

Fig 1: Seat Heater System Diagram

G05293704

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
