Rear Seat Assembly: Components

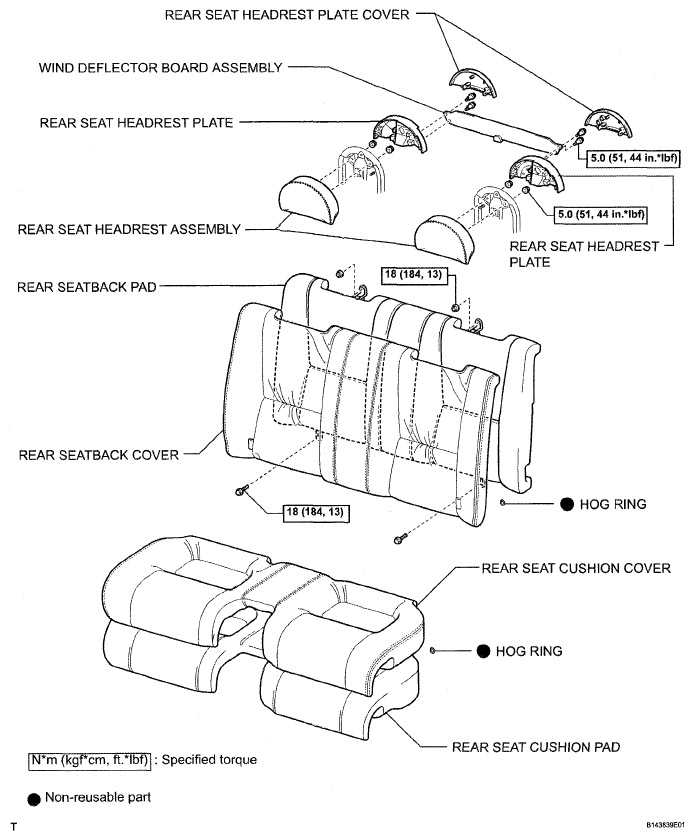

Fig 1: Rear Seat Assembly Replacement Components With Torque Specifications

G05293735

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
