Inspection Procedure

1. Remove the D/C CUT fuse from the engine room No. 1 relay block.
2. Remove the MPX-B2 fuse from the passenger side junction block.
3. Measure the resistance of the fuse.

   Standard resistance

   RESISTANCE SPECIFICATION



   Tester Connection	Specified Condition
   D/C CUT fuse	Below 1 Ω
   MPX-B2 fuse	Below 1 Ω

NG: REPLACE FUSE

OK: Go to next step.

1. Disconnect the 3E and 3G junction block connectors.
2. Disconnect the P4 ECU connector.

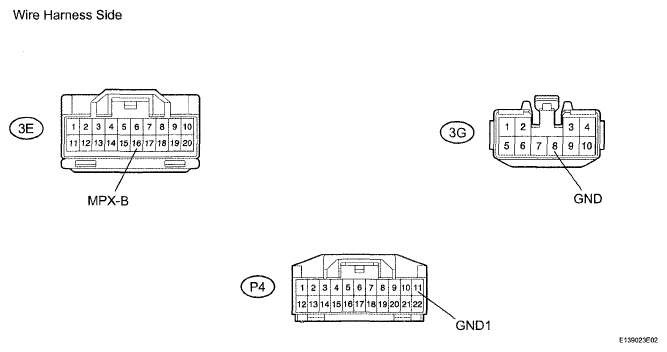

   Fig 1: Identifying 3E And 3G Junction Block And P4 ECU Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Measure the voltage and resistance of the wire harness side connectors.

   Standard voltage

   VOLTAGE SPECIFICATION



   Tester Connection	Condition	Specified Condition
   3E-16 (MPX-B) - Body ground	Always	11 to 14 V

   Standard resistance

   RESISTANCE SPECIFICATION



   Tester Connection	Specified Condition
   3G-8 (GND) - Body ground	Below 1 Ω
   P4-11 (GND1) - Body ground	Below 1 Ω

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: Go to next step.

1. Disconnect the 3H junction block connector.
2. Disconnect the A21 sensor connector.
3. Disconnect the A10 amplifier connector.
4. Disconnect the P6 ECU connector.

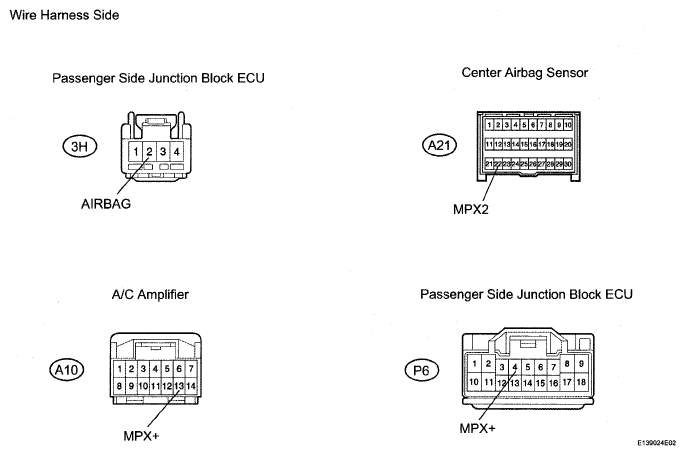

   Fig 2: Identifying 3H Junction Block, A21 Sensor, A10 Amplifier Connector And P6 ECU Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Measure the resistance of the wire harness side connectors.

   Standard resistance

   RESISTANCE SPECIFICATION



   Tester Connection	Specified Condition
   3H-2 (AIRBAG) - A21-22 (MPX2)	Below 1 Ω
   P6-4 (MPX-) - A10-13 (MPX+)	Below 1 Ω

   Result

   RESULT CHART



   Result	Proceed to
   Both are OK	A
   One is OK	B
   Both are NG	C

B: REPLACE PASSENGER SIDE JUNCTION BLOCK AND REPAIR OR REPLACE HARNESS OR CONNECTOR

C: REPAIR OR REPLACE HARNESS AND CONNECTOR

A: REPLACE PASSENGER SIDE JUNCTION BLOCK
