Inspection Procedure

1. Check that the luggage door opening switch can operate the retractable hardtop normally.

   OK: Luggage door opening switch can operate retractable hardtop normally.

OK: REPLACE SLIDING ROOF CONTROL ECU

NG: Go to next step.

1. Disconnect the S18 and S19 ECU connectors.
   Fig 1: Identifying S18 And S19 ECU Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance and voltage of the wire harness side connectors.

   Standard voltage

   VOLTAGE SPECIFICATION



   Tester Connection	Specified Condition
   S19-8 (CPUB) - Body ground	10 to 14 V

   Standard resistance

   RESISTANCE SPECIFICATION



   Tester Connection	Specified Condition
   S18-5 (E5) - Body ground	Below 1 Ω
   S18-6 (E1) - Body ground	Below 1 Ω
   S19-9 (E2) - Body ground	Below 1 Ω
   S19-10 (E3) - Body ground	Below 1 Ω
   S19-11 (E4) - Body ground	Below 1 Ω

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: Go to next step.

1. Disconnect the P9, P23 and S18 ECU connectors.

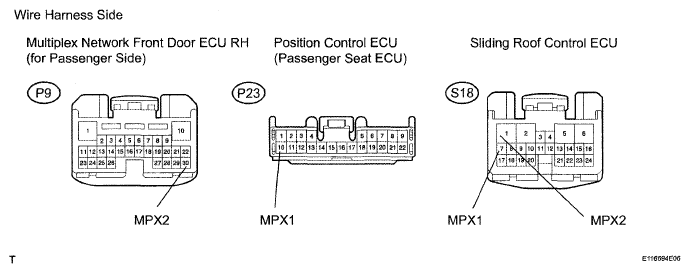

   Fig 2: Identifying P9, P23 And S18 ECU Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance of the wire harness side connectors.

   Standard resistance

   RESISTANCE SPECIFICATION



   Tester Connection	Specified Condition
   S18-7 (MPX1) - P9-30 (MPX2)	Below 1 Ω
   S18-1 (MPX2) - P23-10 (MPX1)	Below 1 Ω

   Result

   RESULT CHART



   Result	Proceed to
   Both are OK	A
   One is OK	B
   Both are NG	C

B: REPLACE SLIDING ROOF CONTROL ECU AND REPAIR OR REPLACE HARNESS AND CONNECTOR

C: REPAIR OR REPLACE HARNESS AND CONNECTOR

A: REPLACE SLIDING ROOF CONTROL ECU
