Rear Bumper: Components
Fig 1: Identifying Rear Bumper Components (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

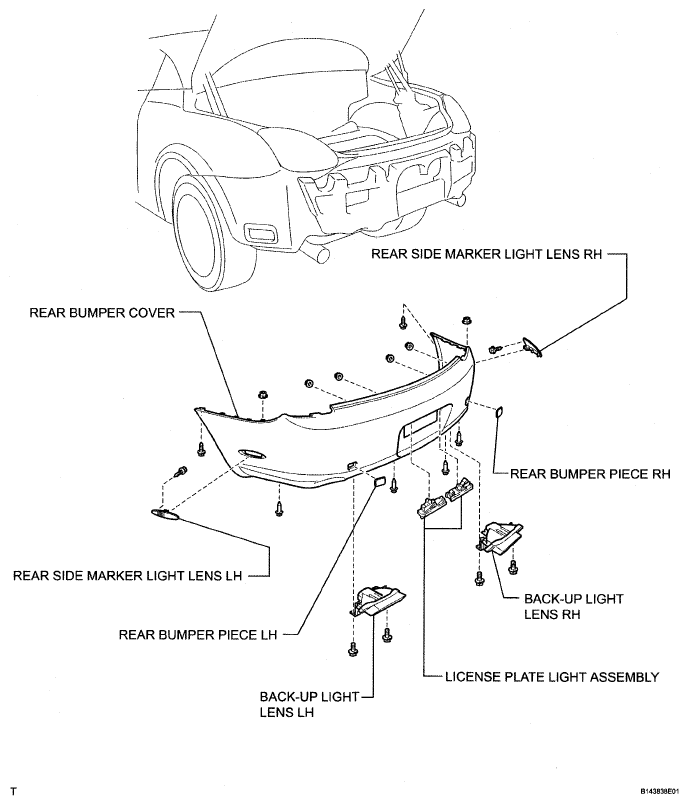

Fig 2: Identifying Rear Bumper Components (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Rear Bumper Components (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
