Parts Location

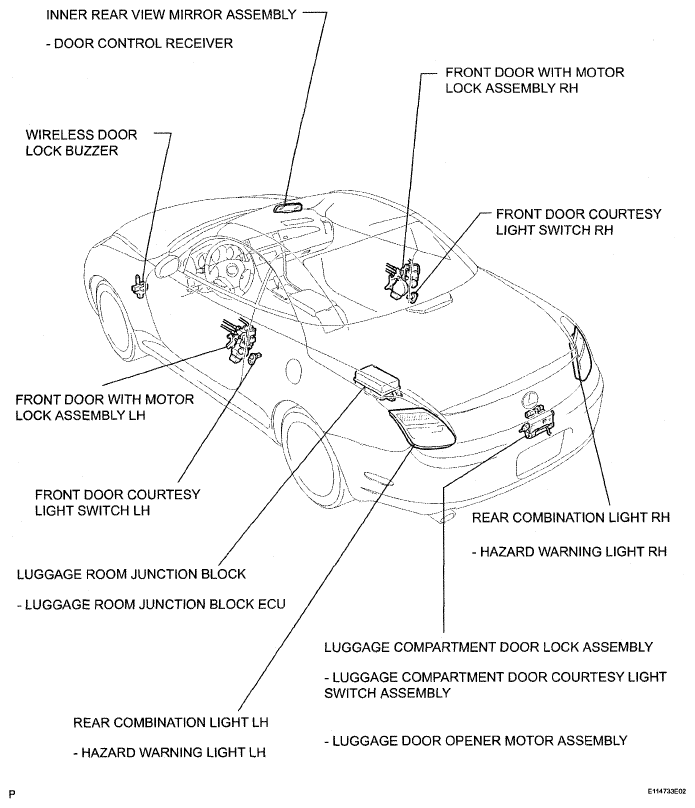

Fig 1: Identifying Wireless Door Lock Control System Components Location (1 Of 3)
G05292895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

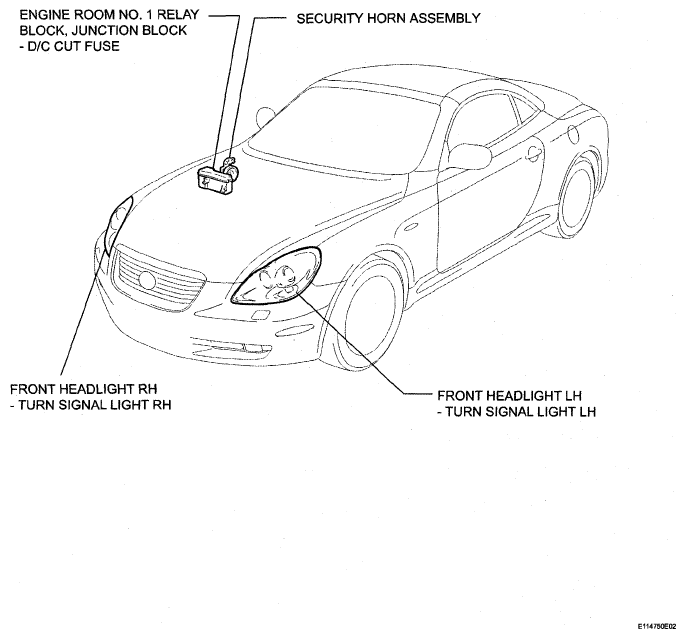

Fig 2: Identifying Wireless Door Lock Control System Components Location (2 Of 3)
G05292896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

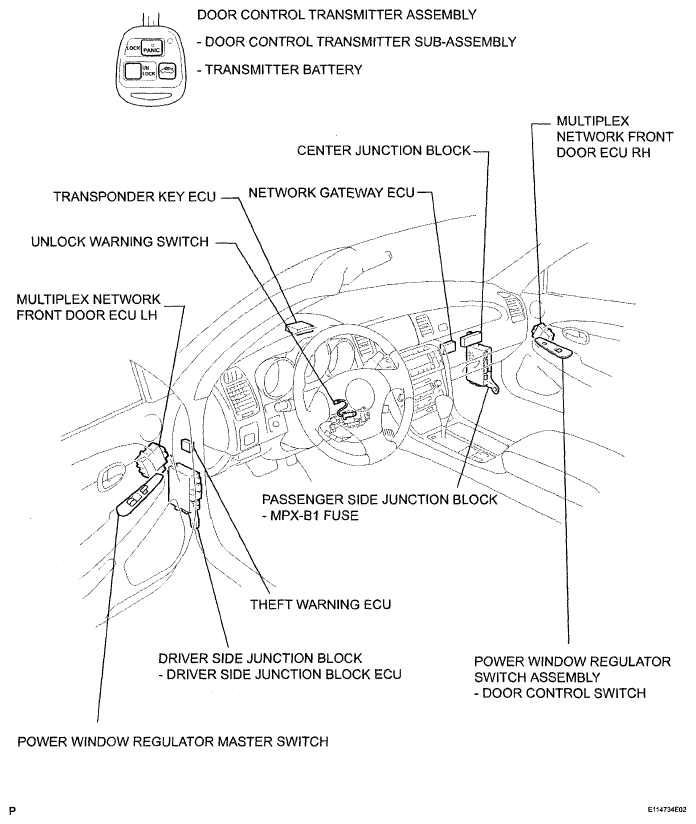

Fig 3: Identifying Wireless Door Lock Control System Components Location (3 Of 3)
G05292897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
