Parts Location

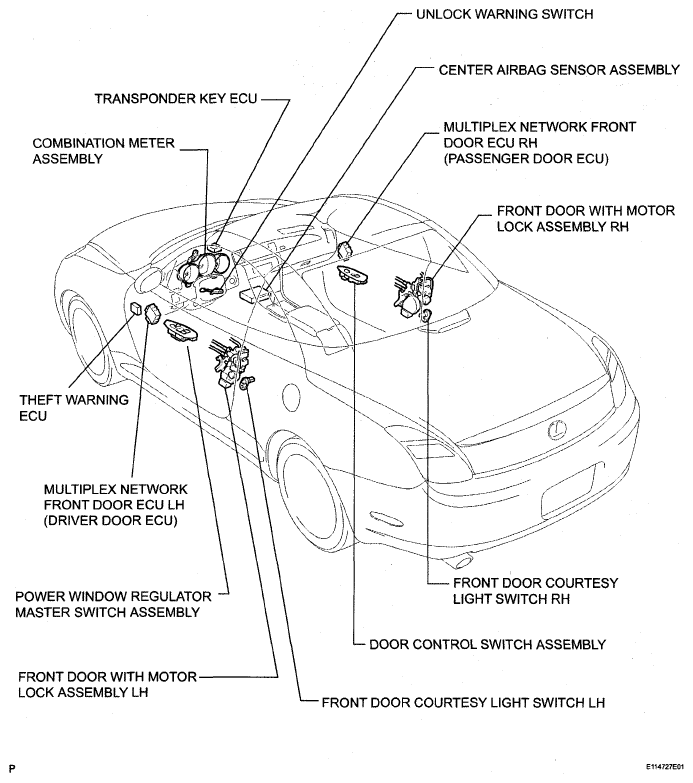

Fig 1: Identifying Power Door Lock Control System Components Location

G05292866

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
