Parts Location

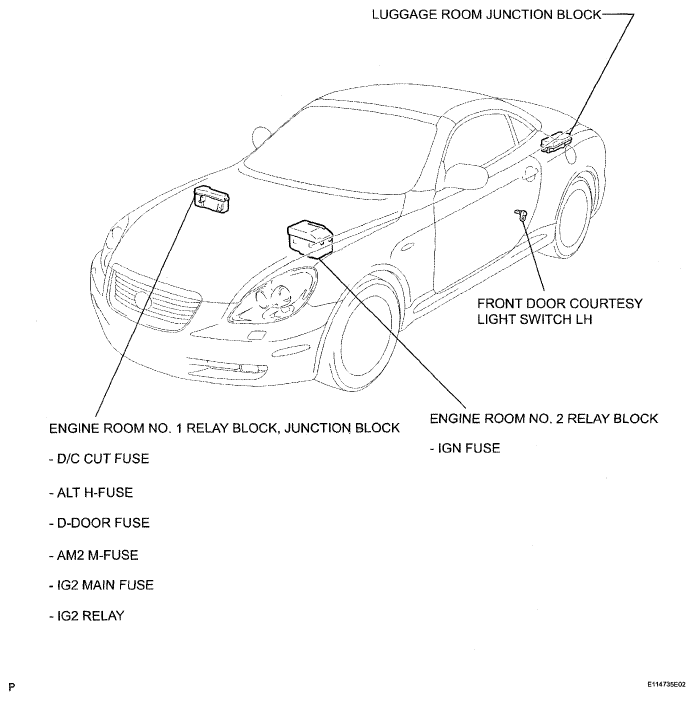

Fig 1: Identifying Key Reminder Warning System Components Location (1 Of 2)
G05292940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

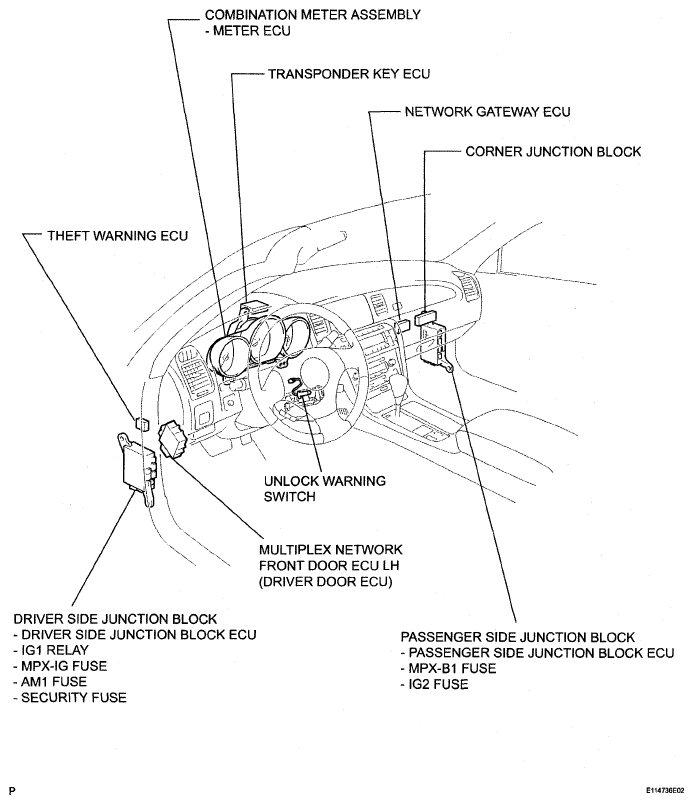

Fig 2: Identifying Key Reminder Warning System Components Location (2 Of 2)
G05292941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
