Parts Location

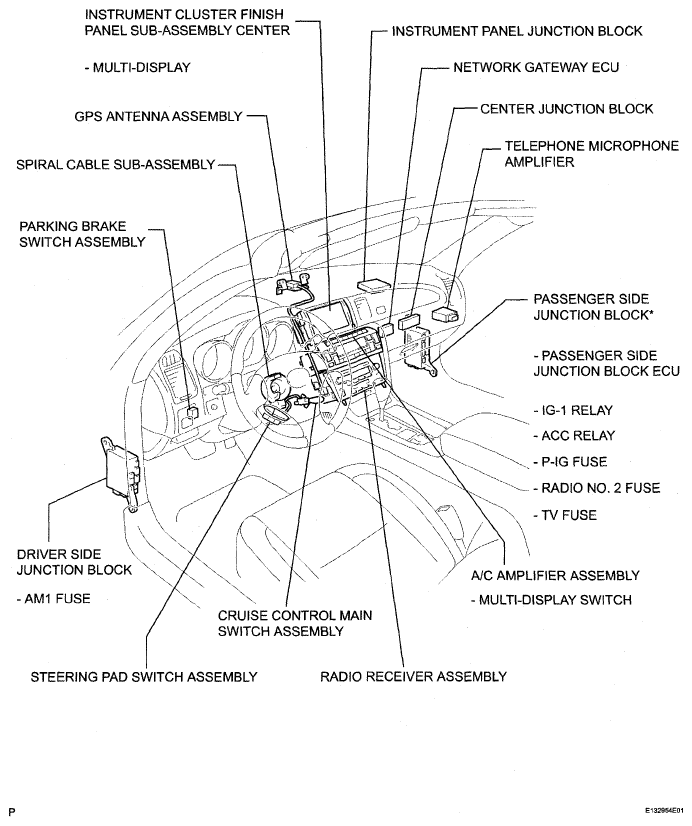

Fig 1: Identifying Navigation System Components Location (1 Of 2)
G05293185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

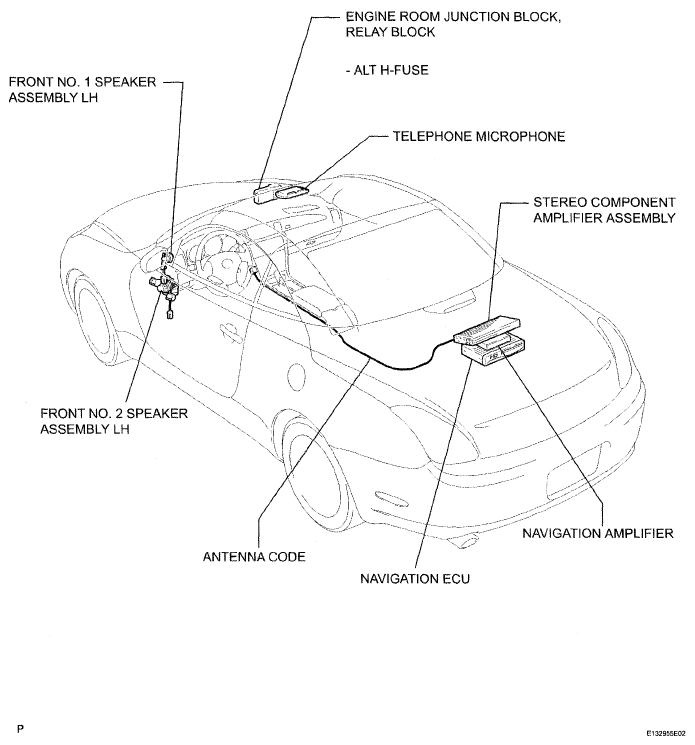

Fig 2: Identifying Navigation System Components Location (1 Of 2)
G05293186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
