Door Control Switch Circuit: Wiring Diagram

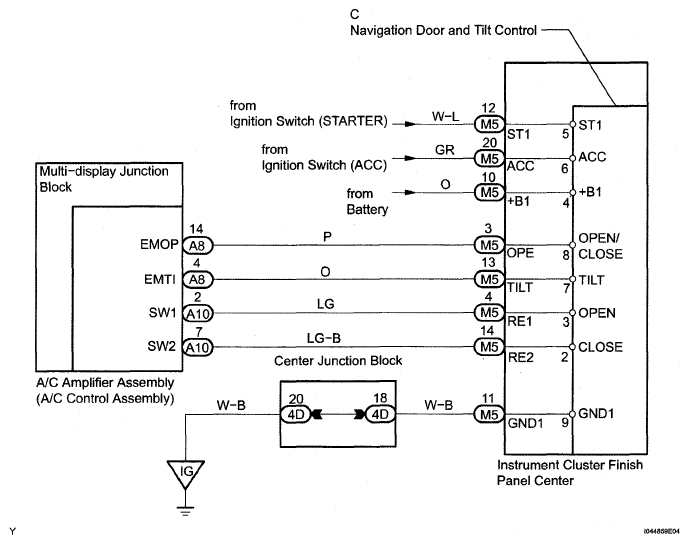

Fig 1: Door Control Switch - Wiring Diagram

G05293354

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
