System Diagram

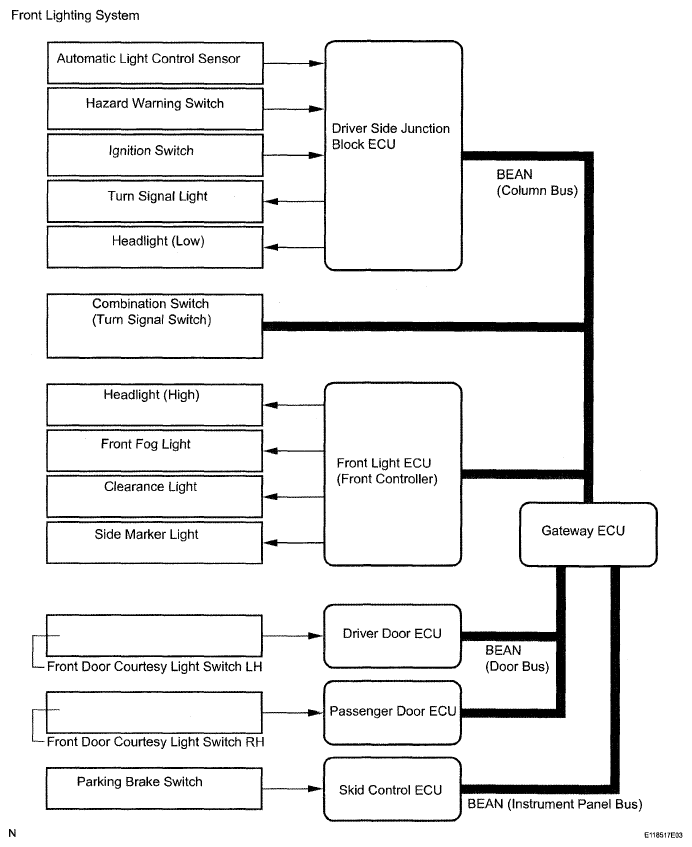

Fig 1: Front Lighting System Diagram
G05292563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

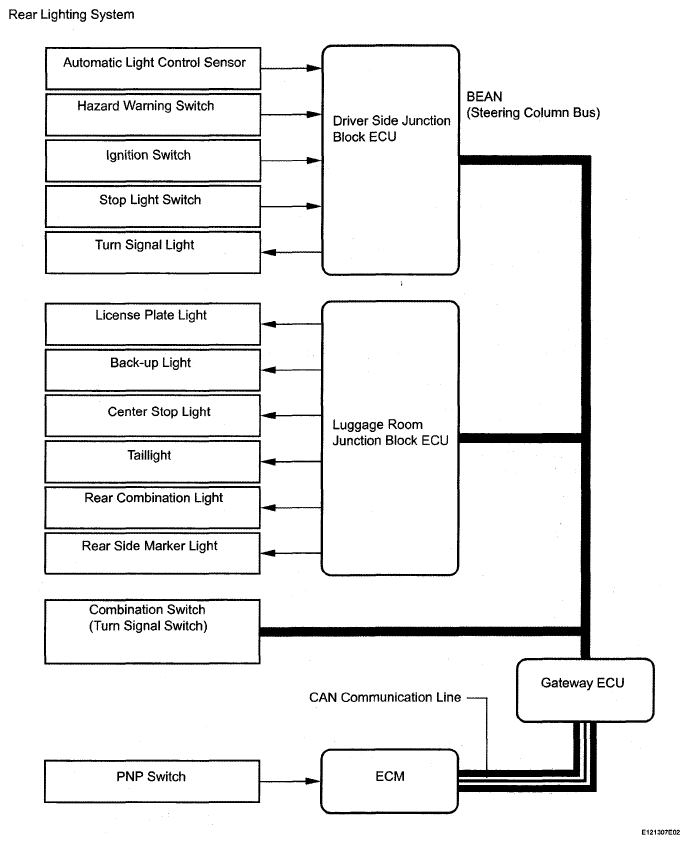

Fig 2: Rear Lighting System Diagram
G05292564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

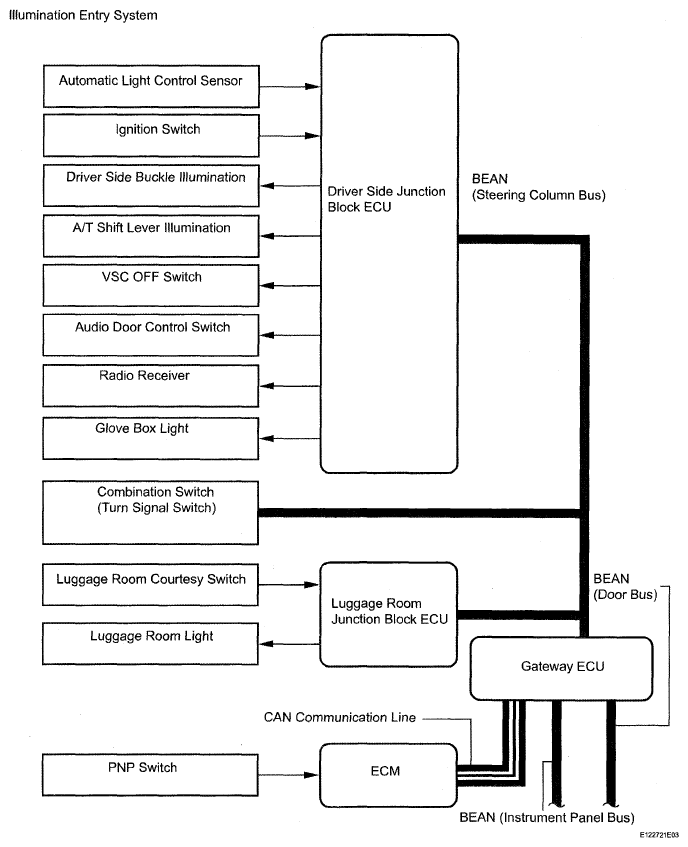

Fig 3: Illumination Lighting System Diagram (1 Of 2)
G05292565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

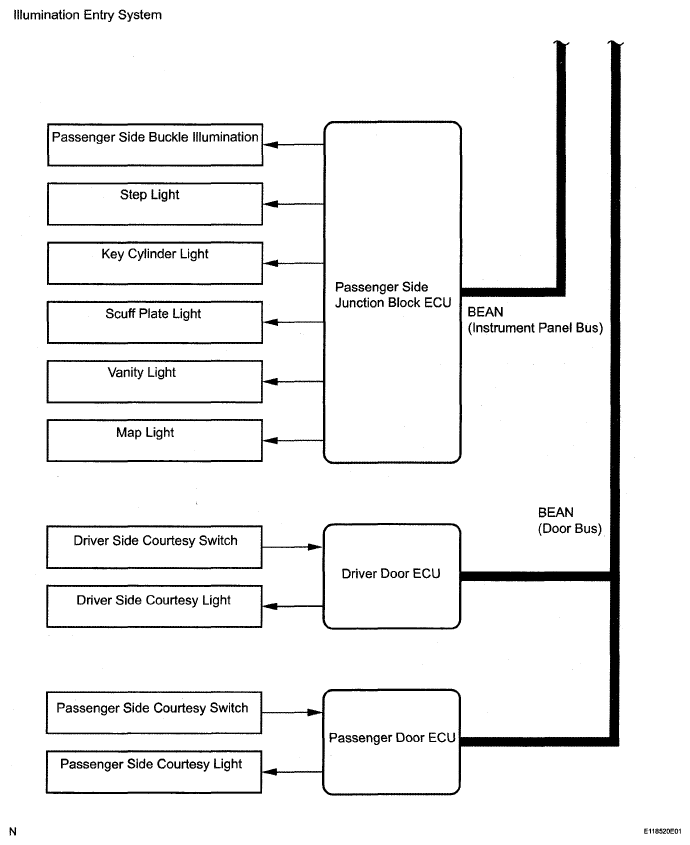

Fig 4: Illumination Lighting System Diagram (2 Of 2)
G05292566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

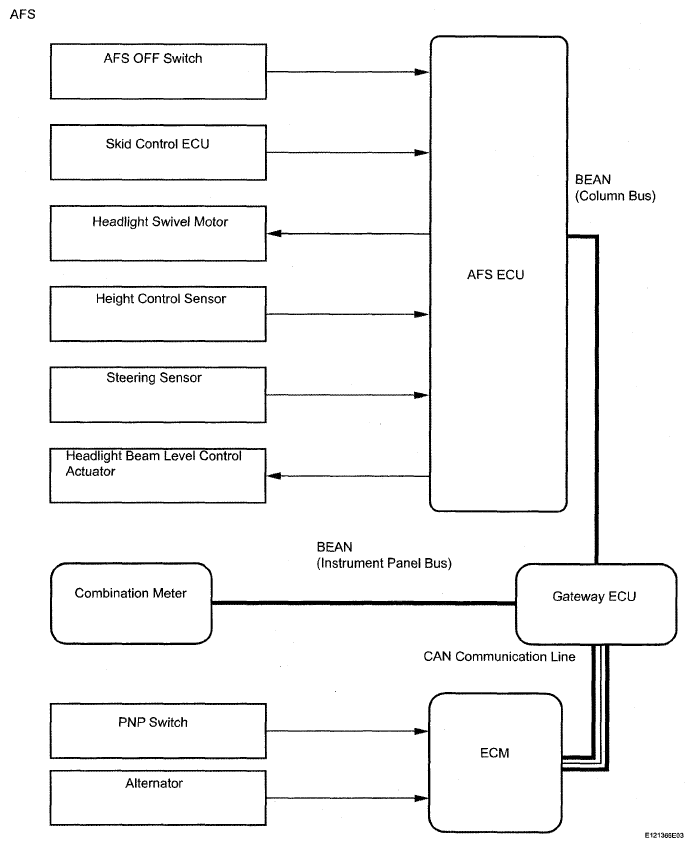

Fig 5: AFS System Diagram
G05292567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
