Parts Location

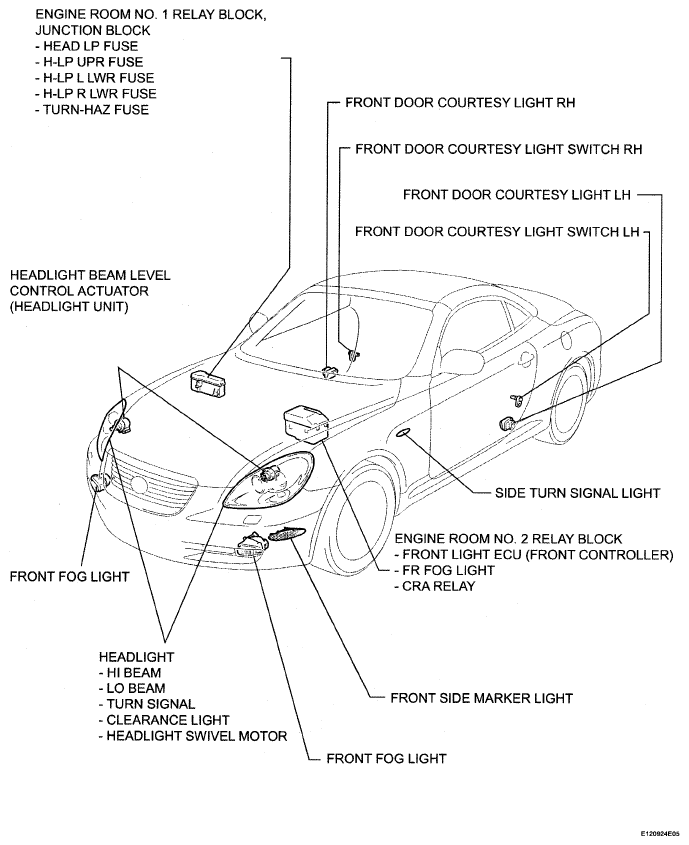

Fig 1: Identifying Lighting System Components Location (1 Of 3)
G05292560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

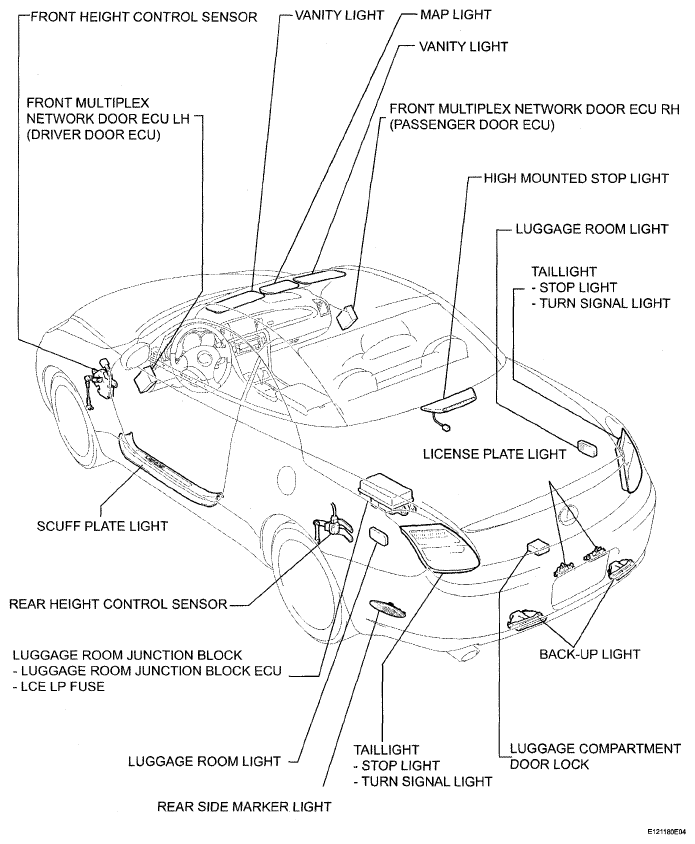

Fig 2: Identifying Lighting System Components Location (2 Of 3)
G05292561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

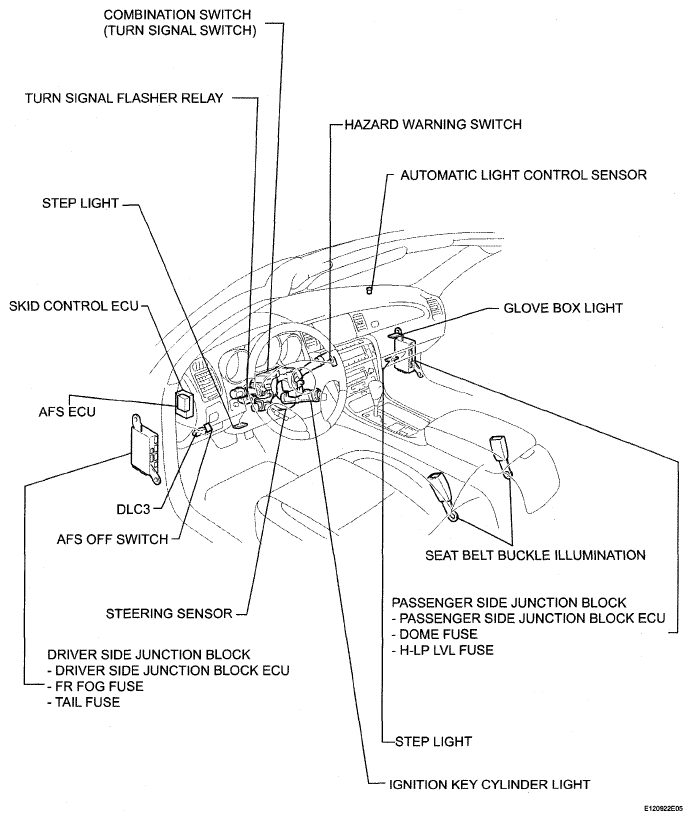

Fig 3: Identifying Lighting System Components Location (3 Of 3)
G05292562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
