Radio Antenna Holder: Components

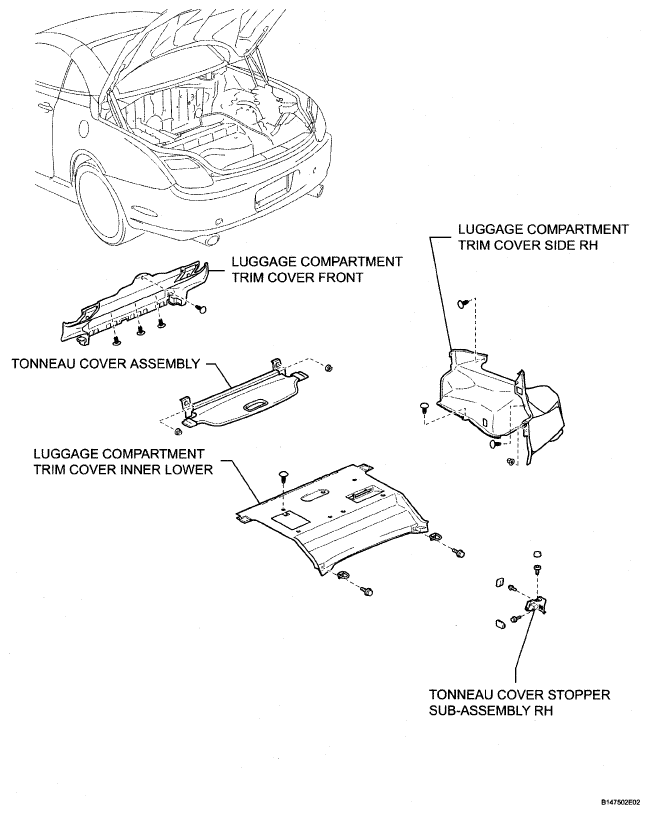

Fig 1: Identifying Radio Antenna Holder Components (1 Of 3)
G05293151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

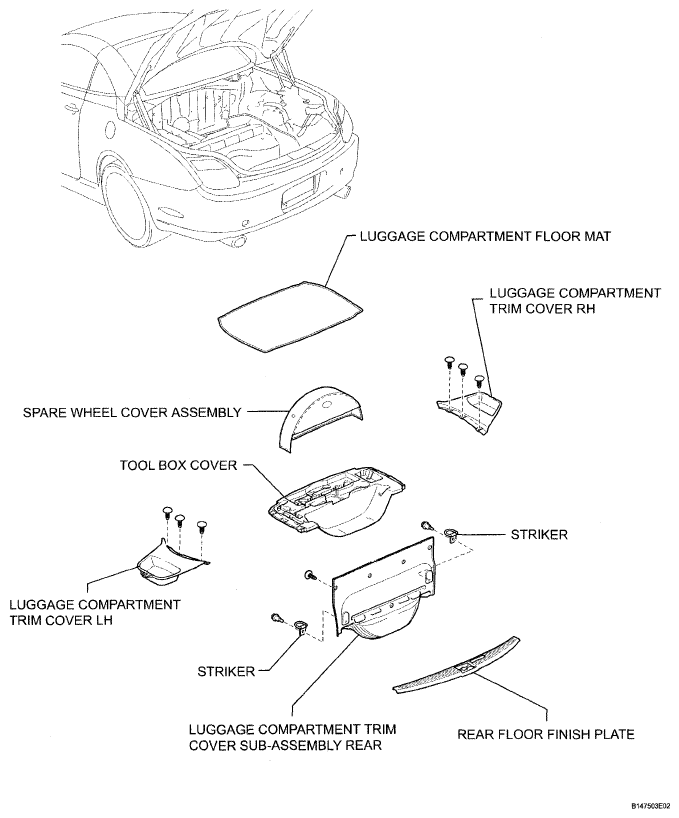

Fig 2: Identifying Radio Antenna Holder Components (2 Of 3)
G05293152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

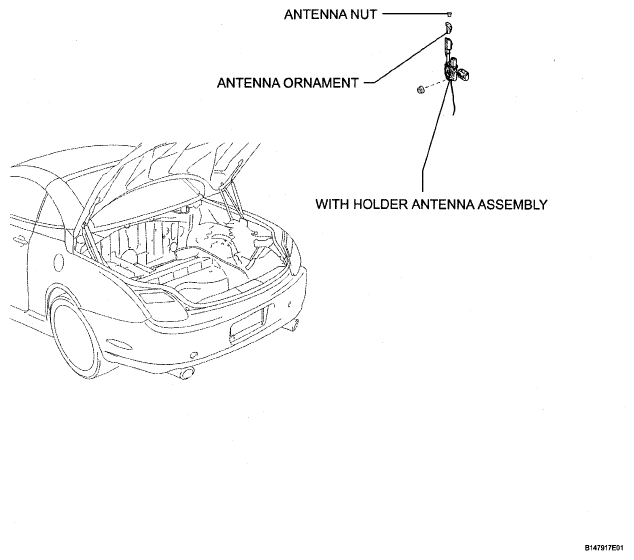

Fig 3: Identifying Radio Antenna Holder Components (3 Of 3)
G05293153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
