Stereo Component Amplifier Power Source Circuit: Wiring Diagram

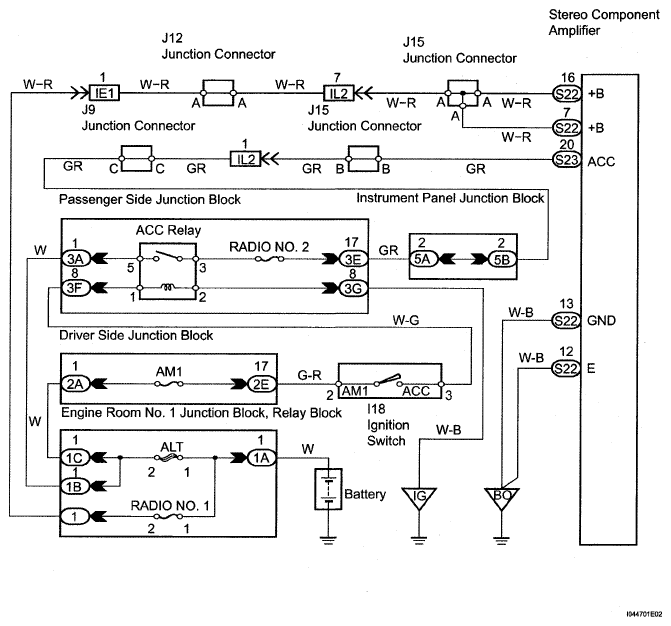

Fig 1: Stereo Component Amplifier Power Source - Wiring Diagram

G05293096

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
