System Diagram

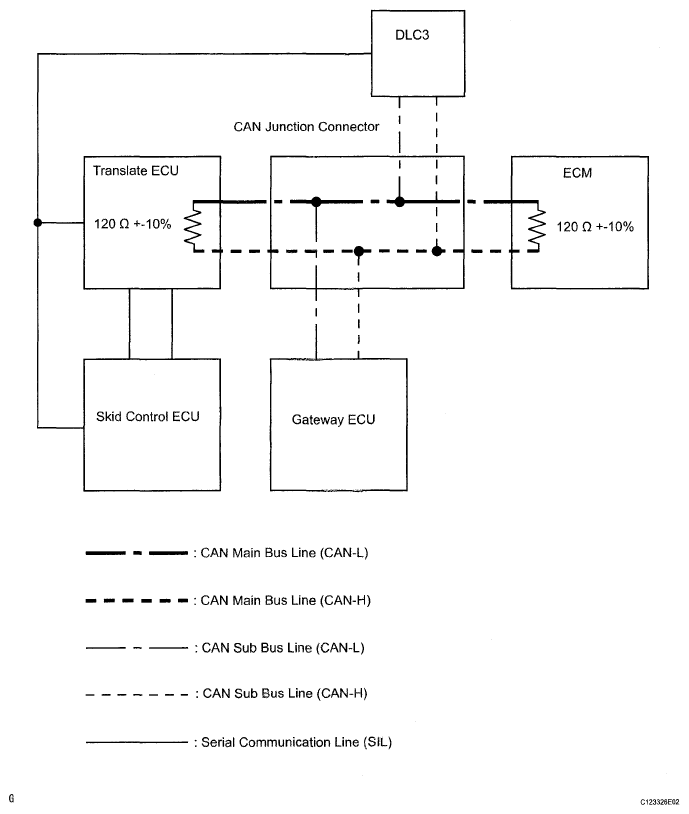

Fig 1: Can Communication System Diagram
G05294540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The ECM uses the CAN communication system instead of the conventional communication line (SIL) to perform DTC communication.
