Driver Side Junction Block Inner Circuit

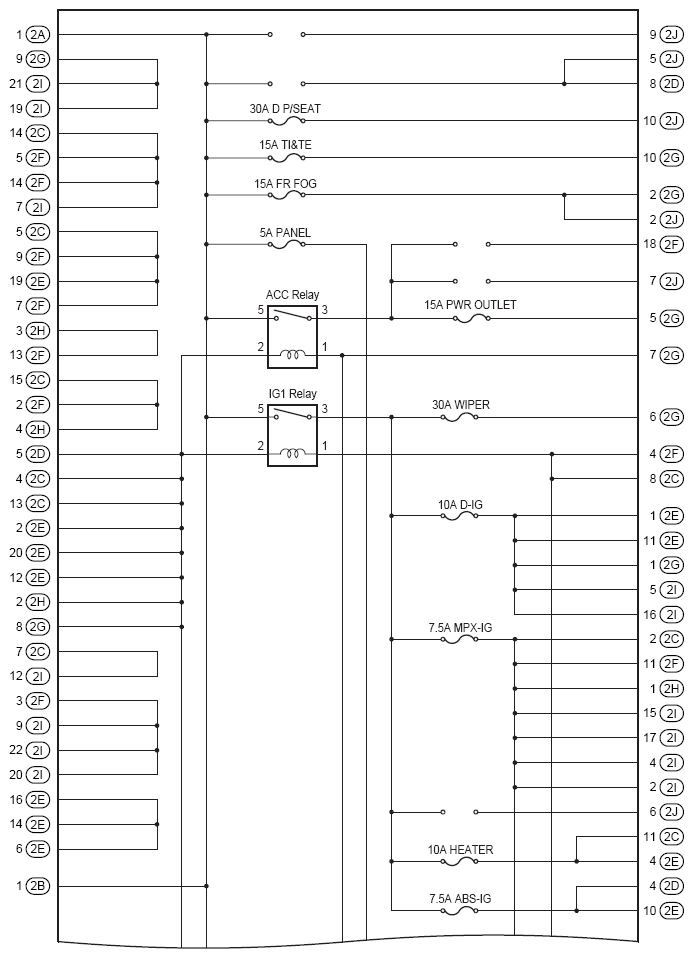

Fig 1: Driver Side J/B Inner Wiring Diagram (1 Of 2)
G08933720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

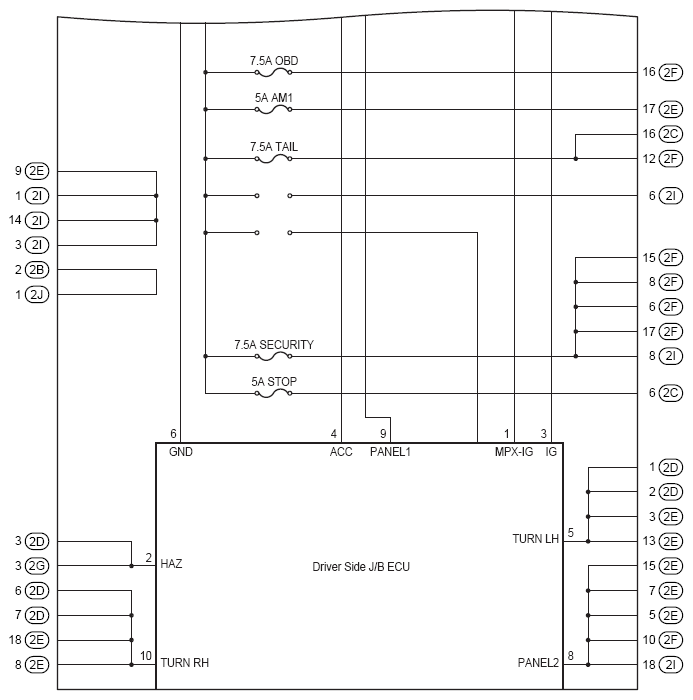

Fig 2: Driver Side J/B Inner Wiring Diagram (2 Of 2)
G08933721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
