Navigation ECU Power Source Circuit: Wiring Diagram

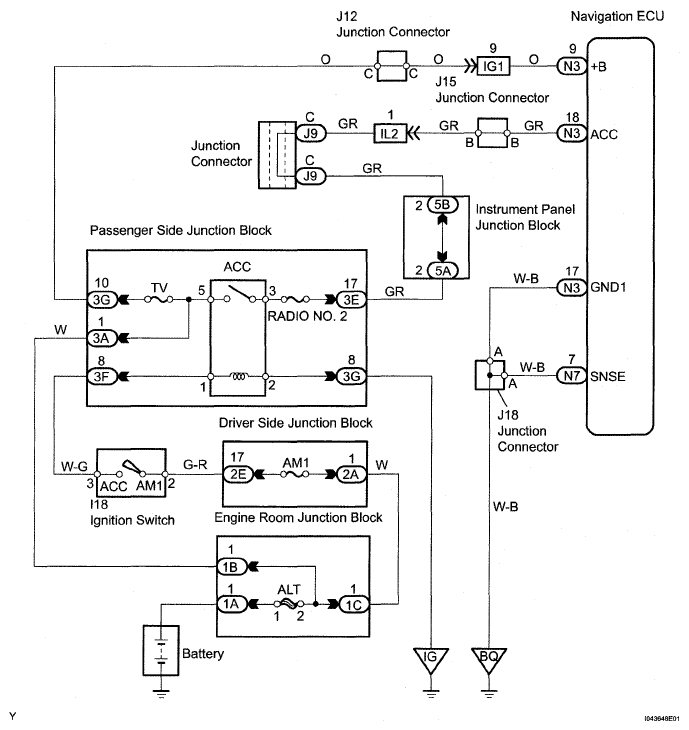

Fig 1: Navigation ECU Power Source - Wiring Diagram

G05293362

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
