Mute Signal Circuit between Stereo Component Amplifier Assembly and Navigation ECU: Wiring Diagram

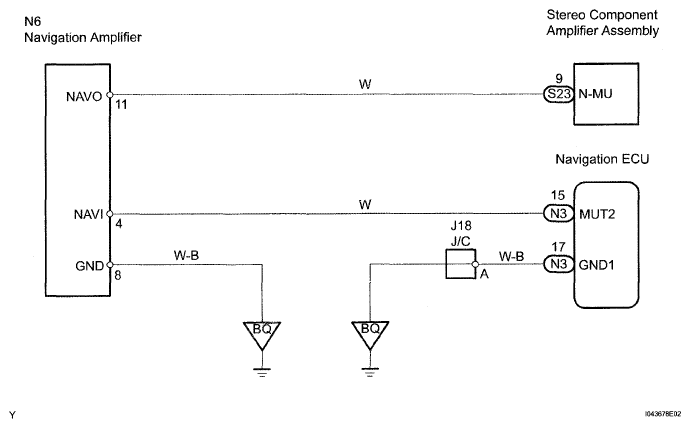

Fig 1: Mute Signal Between Stereo Component Amplifier Assembly And Navigation ECU - Wiring Diagram
G05293349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
