Display Signal Circuit between Navigation ECU and Multi-display: Wiring Diagram

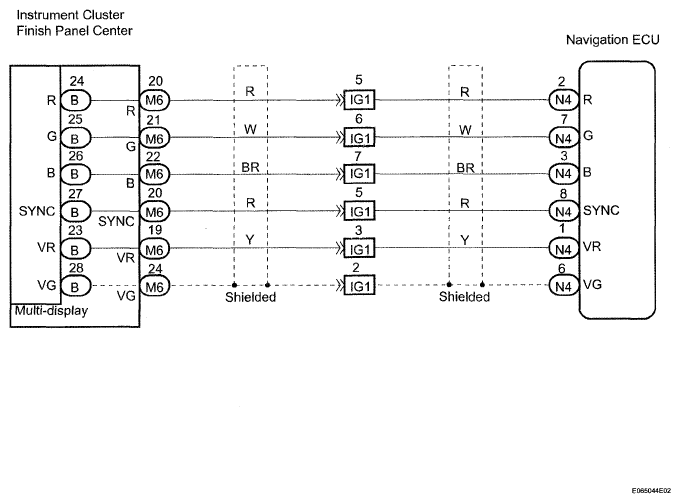

Fig 1: Display Signal Between Navigation ECU And Multi-Display - Wiring Diagram
G05293336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
