Occupant Classification Ecu: Removal

WARNING: This page is about a different car, the 2008 Toyota FJ Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    CAUTION: Read PRECAUTION  thoroughly before servicing .
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait for at least 90 seconds after disconnecting the cable to prevent the airbag from working.
  3. REMOVE FRONT SEAT ASSEMBLY RH  (See REMOVAL )
  4. REMOVE OCCUPANT CLASSIFICATION ECU
    1. Disconnect the 2 connectors from the occupant classification ECU.
    2. Using a screwdriver, remove the occupant classification ECU.

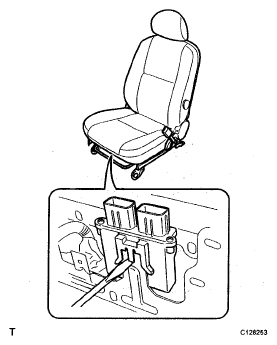

      Fig 1: Identifying Occupant Classification ECU
      G05113349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
